M Pavilion 2021 Sun Shade/Sail (2021 DA Entry 1857)

APPLICATION OF PROJECT:

The project started out as a functional brief to provide a demountable structure for the M Pavilion 2021 installation.  The catch with the project is that everything has been fully completed and launched on 1st December 2021.  M Pavilion and their designers (MAP Studio / AECOM) had not resolved this functional issue.  M Pavilion needed a shade roof as well as one for light rain (during the summer month)

Emerson – The dearest events are summer rain

PROJECT DESCRIPTION:

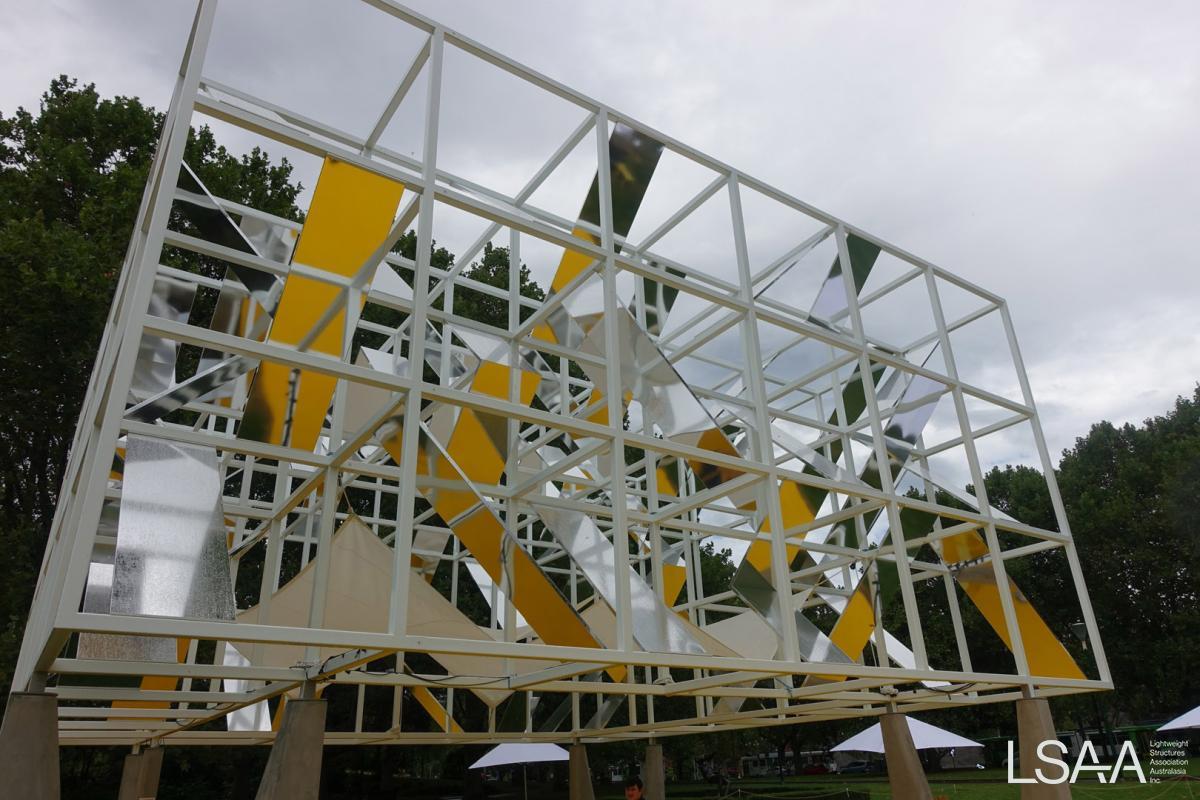

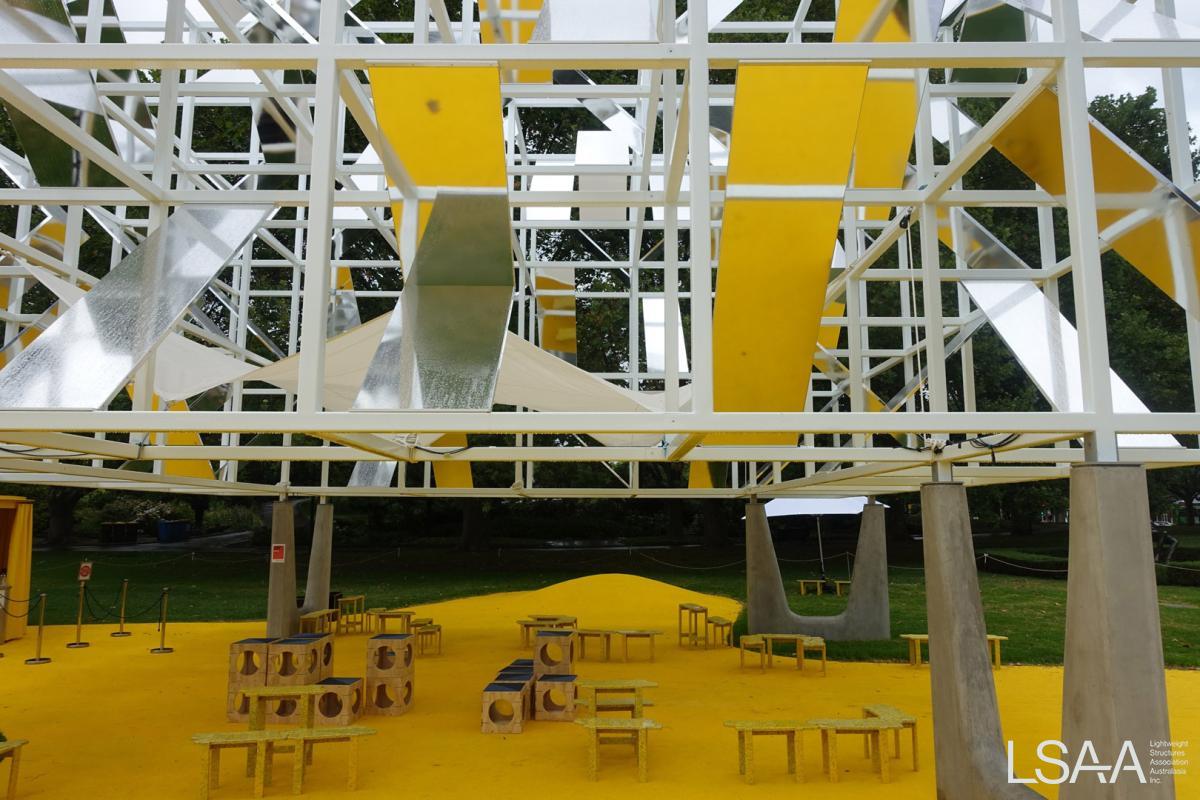

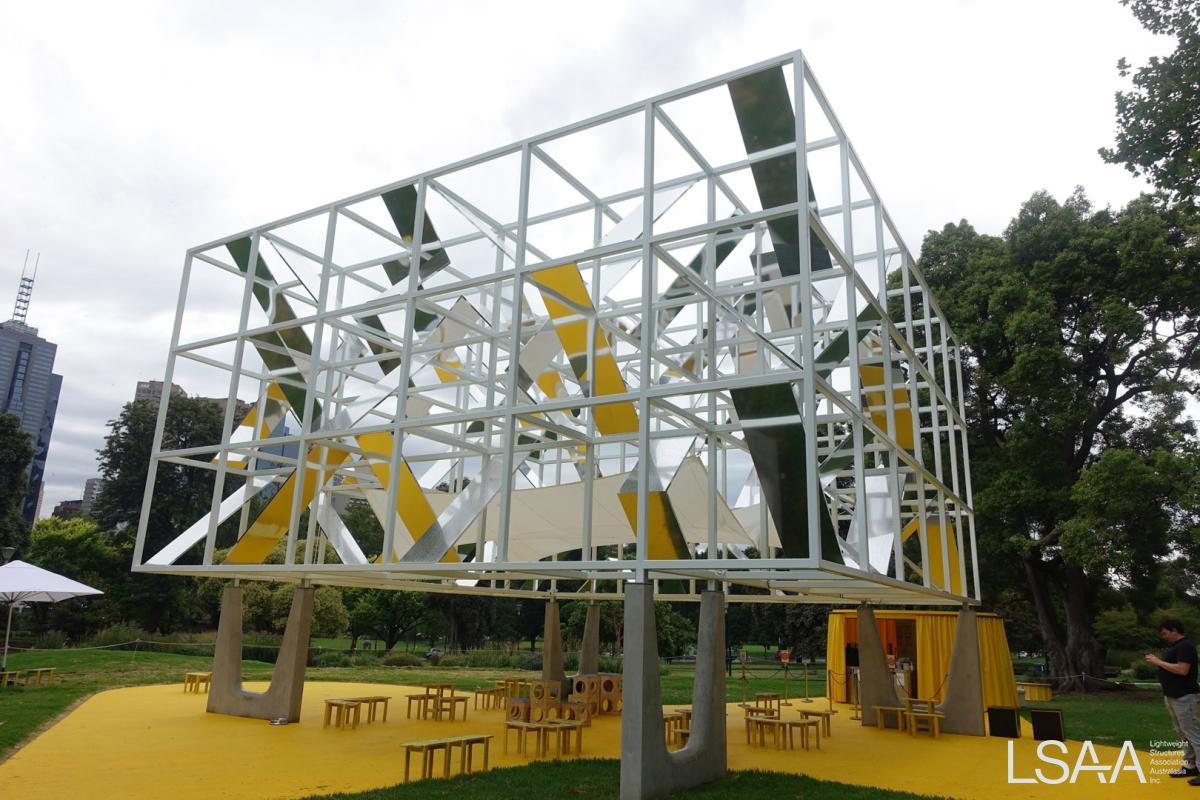

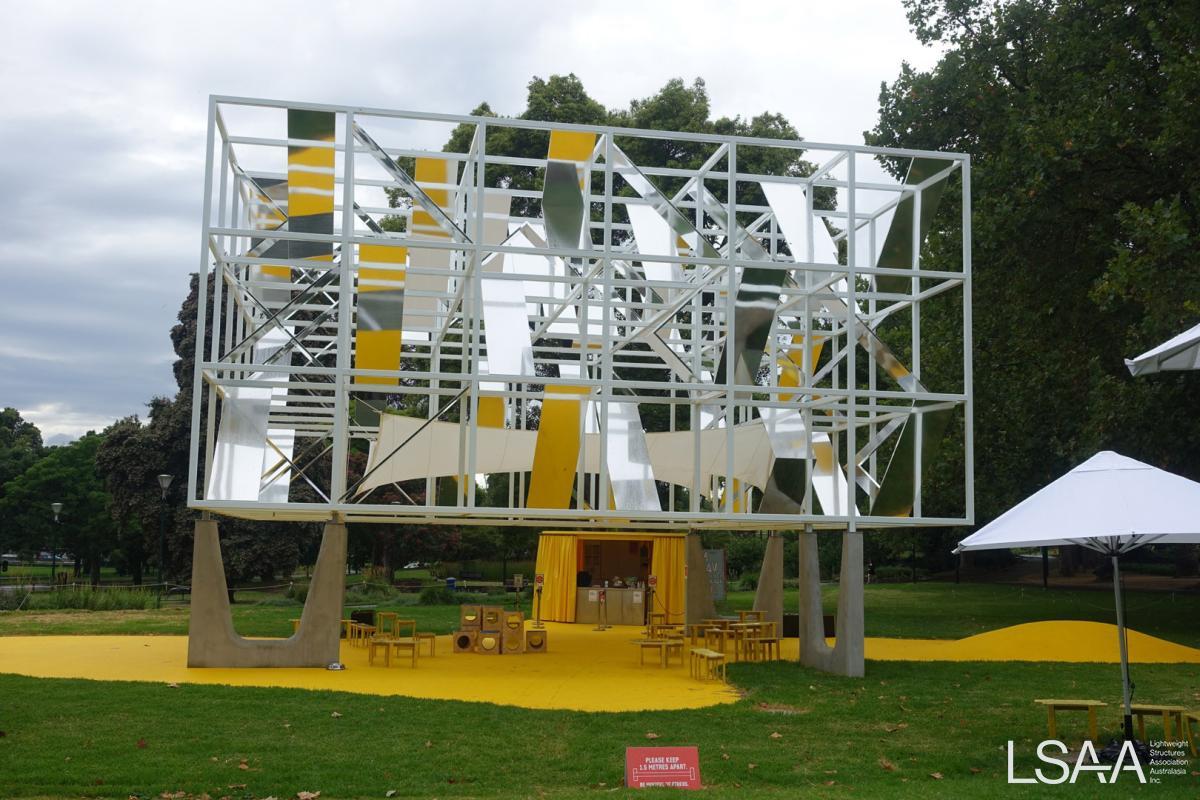

A sculptural cubic frame with shade and rain protection fabric covering and outdoor area in Kings Domain.

185700
185701
185702
185703
185705
185704

DESIGN / FABRICATION / INSTALLATION BRIEF

The transparency and lightness of both form, material and detailing were paramount guiding the design as the shade is only 3m above ground.  Transparency is needed so that the structure does not take away from the M Pavilion installation itself.

STRUCTURAL SYSTEMS

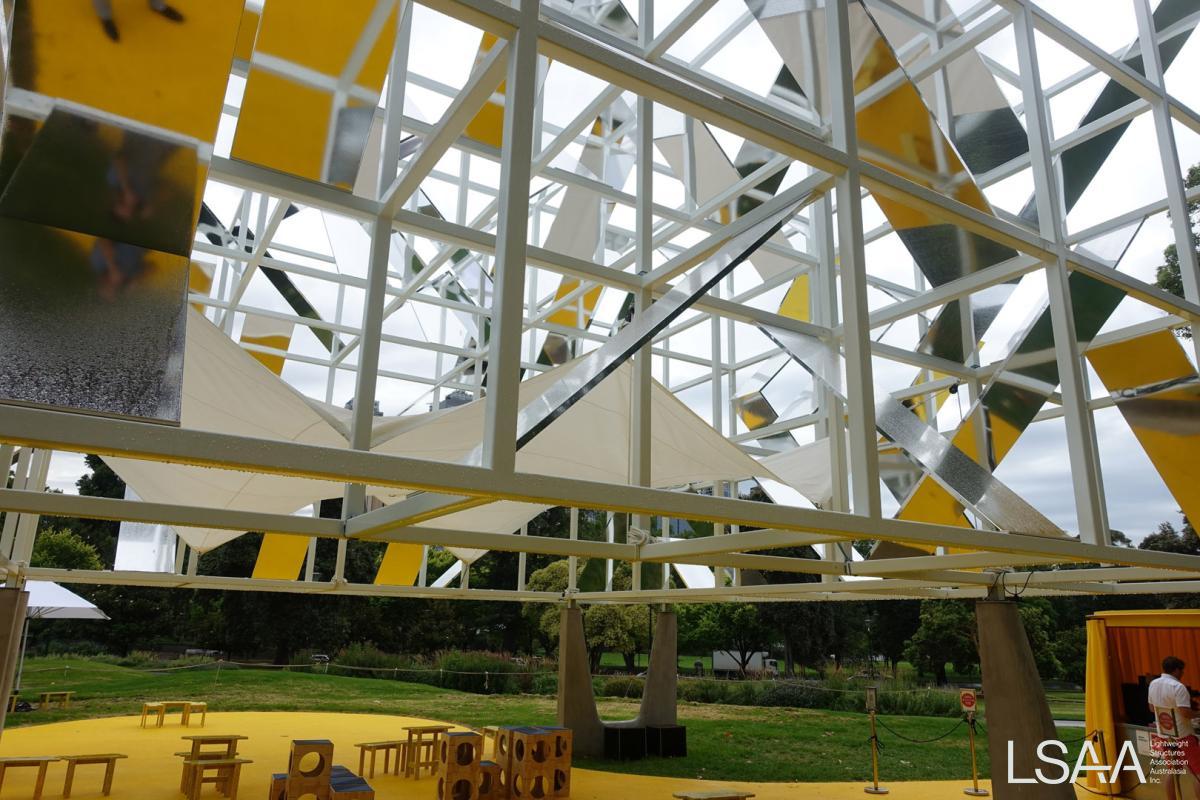

Use of sailcloth and sail rigging equipment (in the form of snatch blocks and shackles) provided the light finish and transparency and lightness that was necessary to execute this project.

MATERIALS

Sailcoth and stainless steel Ronstan rigging equipment.

FABRICATION

All material were sewn together to provide the light texture of the structure

COLLABORATION, CONSTRUCTION AND MAINTENANCE

Team effort with AECOM (Main building engineer), Client (M Pavilion) and 3D Inflate to design, fabricate and install between December 2021– January 2022

COSTS                     AUD$ 20,000

PROJECT CREDITS

Project ID               1857

Project Name           M Pavilion 2021 Sun Shade/Sail
Location       Kings Domain, Melbourne, Vic. Australia

Completion Date     Jan 2022
Preferred Category  1 Alternate Category         3

Entrant Name         Tensys

Address        7/340 Gore Street, Fitzroy, Vic, Australia. 3079
Telephone Land line +61 3 9416 0066    Mobile +61 4111 296 32

Email Address         This email address is being protected from spambots. You need JavaScript enabled to view it.
Website address      www.tensys.com

Entrant Role Structural Engineer
Project Client M Pavilion / Naomi Milgrom Foundation
Project Architect     MAP Studio (Venice)
Structural Engineer  Tensys /AECOM
Building Contractor           Schiavello
Fabricator(s)     3Dinflate
