Yogyakarta International Airport, Indonesia (2021 DA)

APPLICATION OF PROJECT

Airport terminal drop off area roof

The New Yogyakarta International Airport (NYIA) Description

The new Yogyakarta International Airport (NYIA) at Kulon Progo Regency, serves the Yogyakarta Special Region, Indonesia, and is operated by Ankasa Pura. As part of the airport development, Fabritecture was contracted for the design & supply of ETFE pneumatic roofing as well as supply system and ducting.

The ETFE component of the roof comprises 84 2-layer cushions covers a plan area of approximately 14,314m² and is part of an overall canopy integrating polycarbonate elements also, overall providing 18,900m² of weather cover the exterior drop-off area.

DESIGN / FABRICATION / INSTALLATION BRIEF

Yogyakarta's Special Region in Indonesia is now served by the new Yogyakarta International Airport (NYIA) at Kulon Progo Regency. Fabritecture’s contract covered the design and supply of 14,314m² of pneumatic ETFE roofing as part of an overall canopy covering 18,900m².

STRUCTURAL SYSTEMS

The roof provides 18,900 square meters of weather coverage to the exterior drop-off area.

MATERIALS

The ETFE roof creates an exciting yet functional space and the airport terminal. There is 14,314 square meters of ETFE, comprised of 84 double-layer pneumatic cushions. The bottom layer of the cushions features clear ETFE 250µm, while the top layer of 250µm ETFE has a 63% printed silver frit pattern on the ETFE. The ETFE pillows are grouped into 21 clusters of 4 cushions. The roof design resembles a native Indonesian flower design, Kawung.

FABRICATION

The ETFE cushions were designed to Indonesian Standard SNI1727-2013 risk category IV for a wind speed of 40 m/second. Design wind pressure was +0.50kPa and Design wind suction -0.90 kPa. 250µm ETFE was selected for the top and bottom layers of the cushion.

A detailed engineering analysis was undertaken to ensure that each ETFE cushion included in every skylight (3 per skylight) was designed with enough rise to ensure proper water run-off and avoid ponding. With the significant levels of rainfall in the area, this was critical to the cushion design. There were three geometrical options analysed. The extrusion was designed with a U channel to collect water, bird wire to prevent birds perching, and PVC flashing for waterproof finish.

COLLABORATION, CONSTRUCTION AND MAINTENANCE

The installation of the ETFE was complex. This was primarily due to the tight constraints of the program. We were working closely with other trades during installation, including trailing the steel and cladding installers. Extensive coordination was required throughout the installation to ensure that we could meet the scheduled deadlines. These deadlines were set around the opening plans for the entire airport!

COSTS

The Yogyakarta International Airport roof was valued at AUD$2.87m.

COLOUR IMAGES

Filename:  Caption

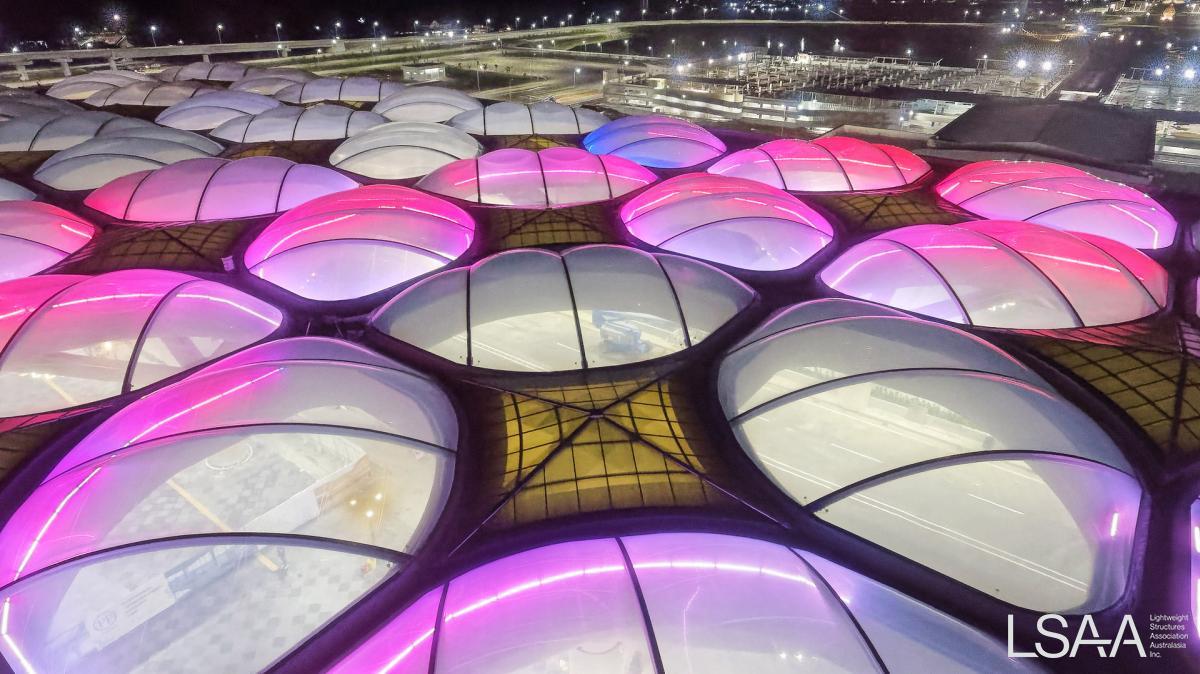

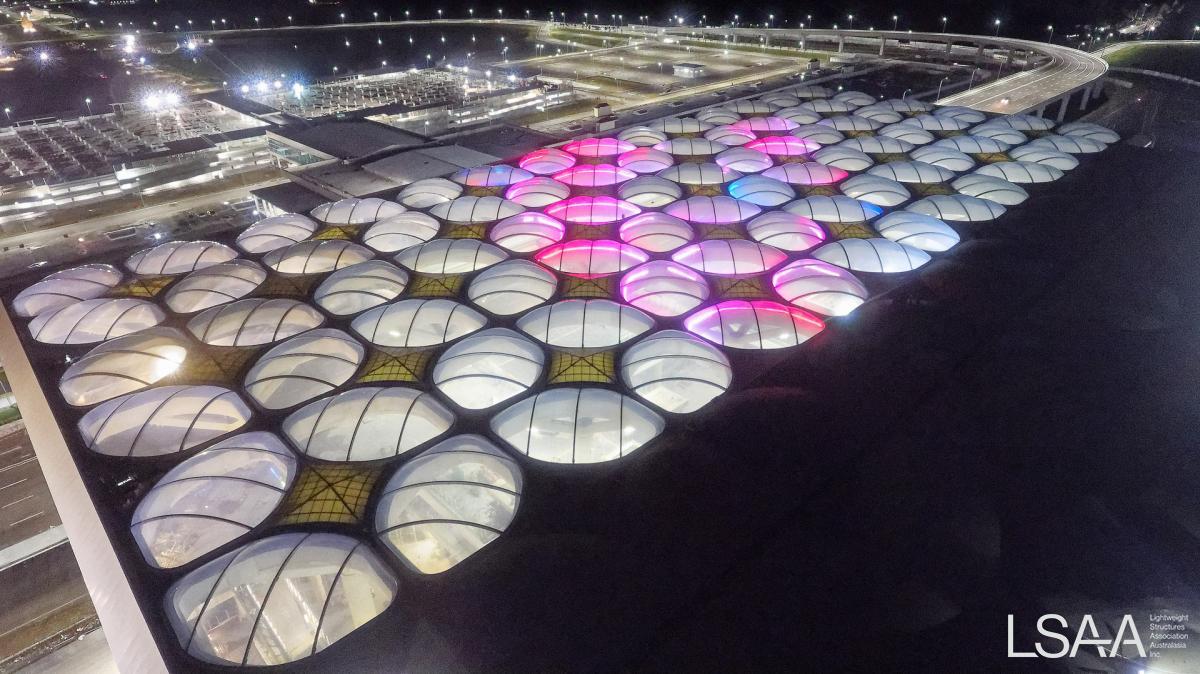

8139_01:  Night-time aerial shot of the ETFE pneumatic cushions with LED lighting

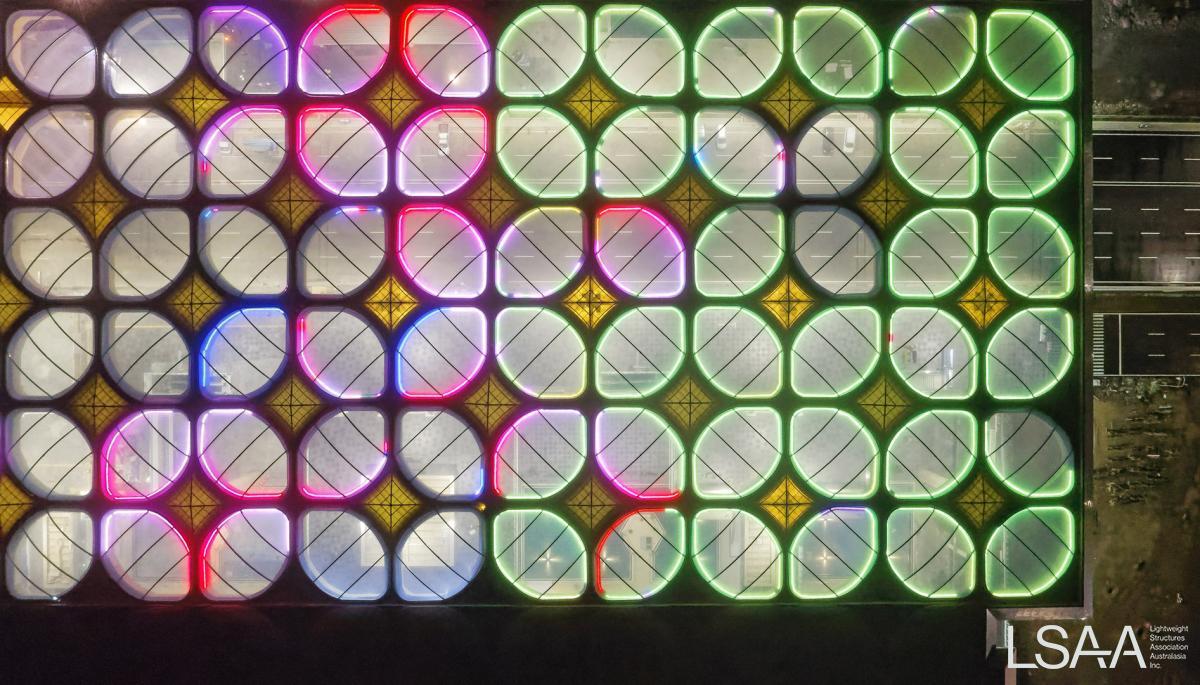

8139_02:  Night-time aerial shot of the ETFE pneumatic cushions with LED lighting

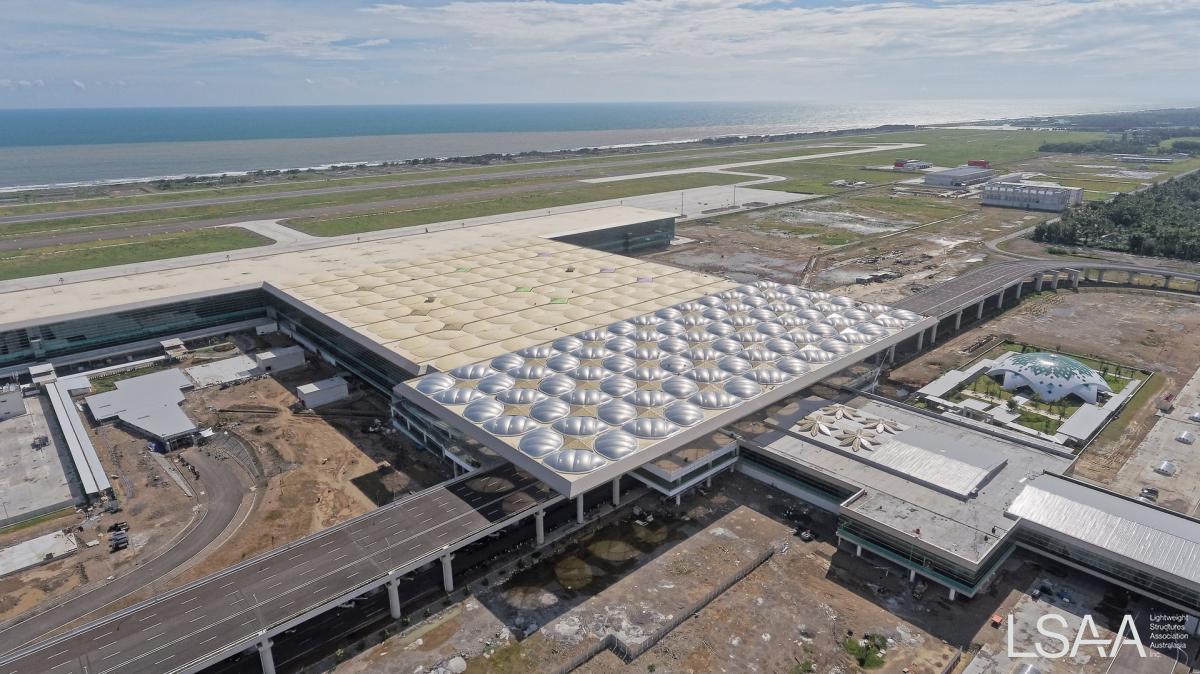

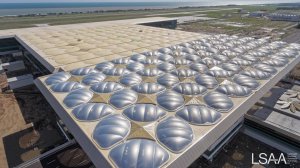

8139_03:  Daytime aerial shot of the ETFE pneumatic cushions

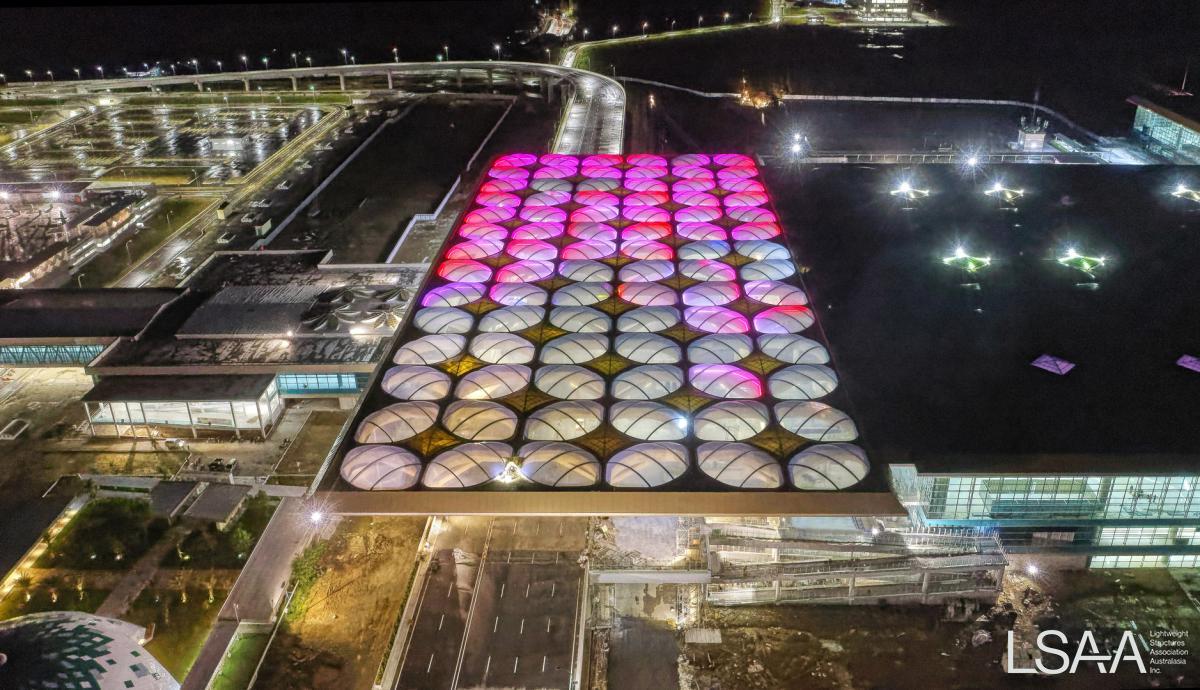

8139_04:  Night-time aerial shot of the ETFE pneumatic cushions with LED lighting

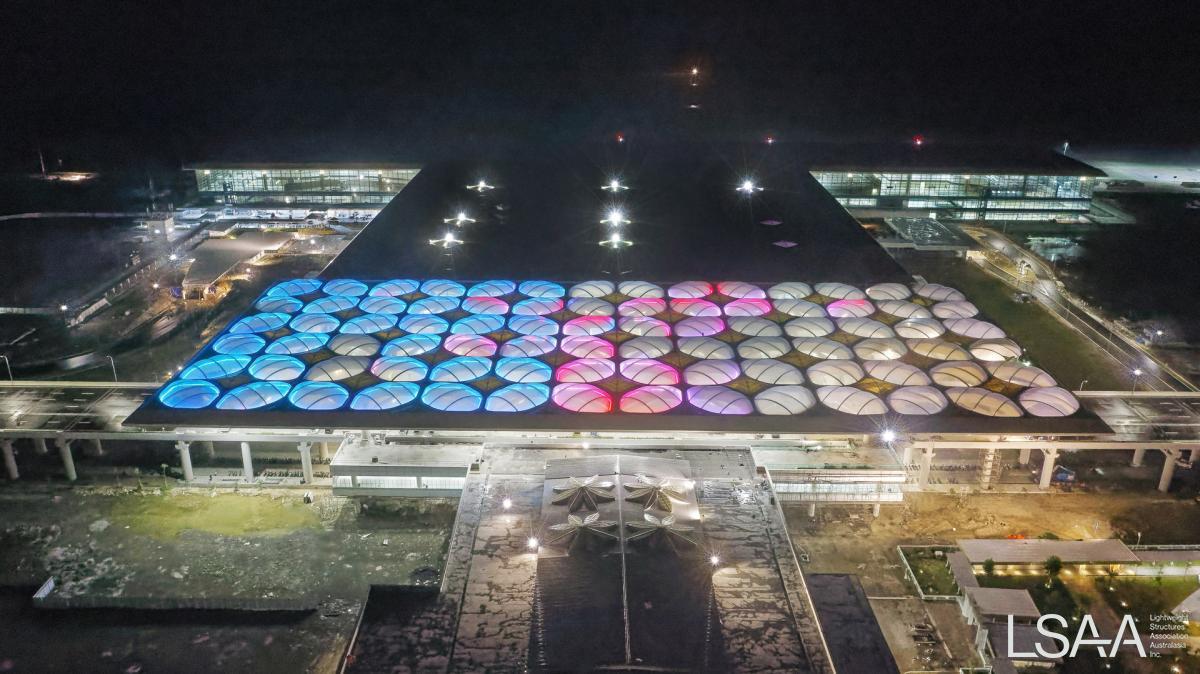

8139_05:  Night-time aerial shot of the ETFE pneumatic cushions with LED lighting

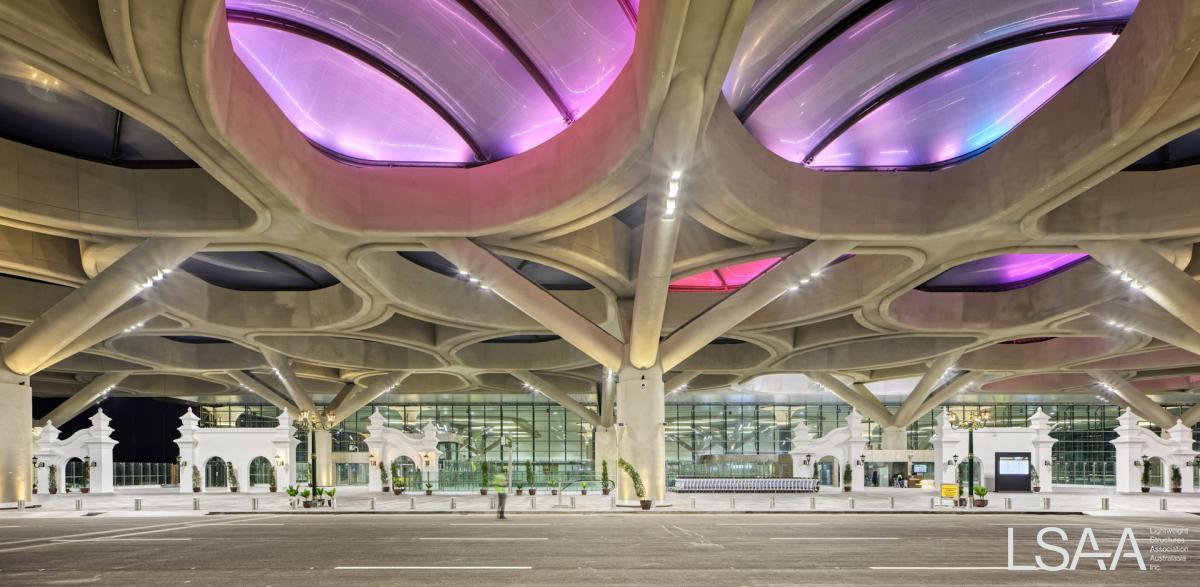

8139_06:  Night shot of ETFE roof from underneath with LED lighting

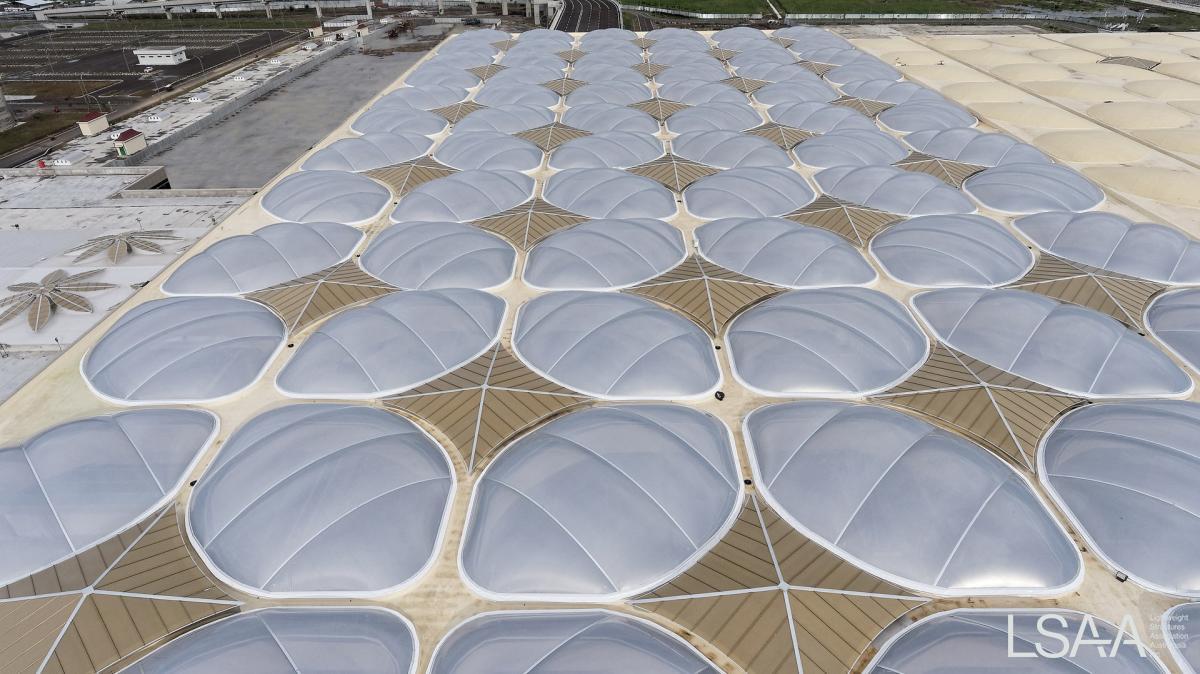

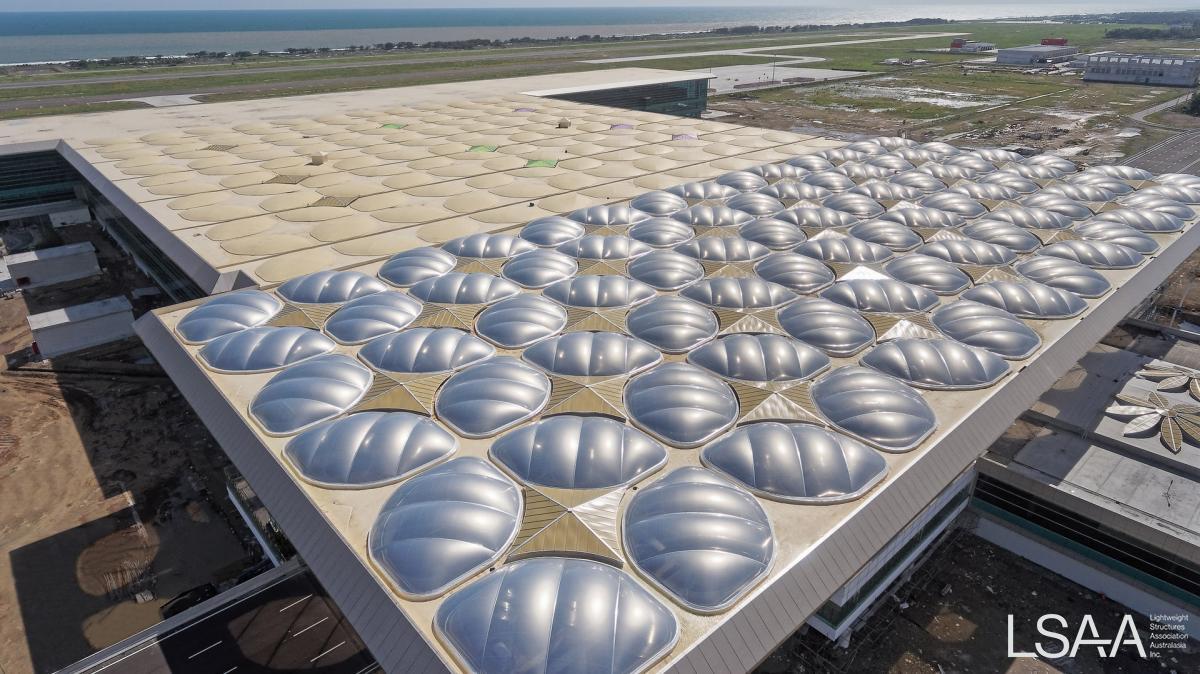

8139_07:  Daytime aerial shot of the ETFE pneumatic cushions
8139_08:  Night-time aerial shot of the ETFE pneumatic cushions with LED backlight

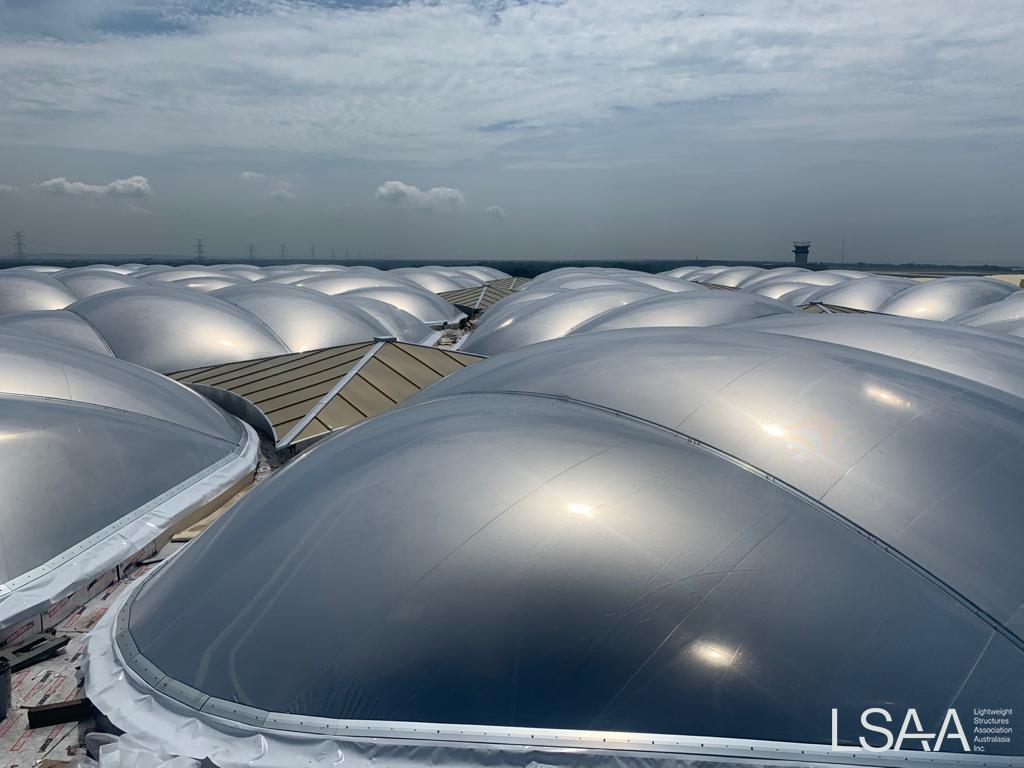

8139_09:  Daytime aerial shot of the ETFE pneumatic cushions

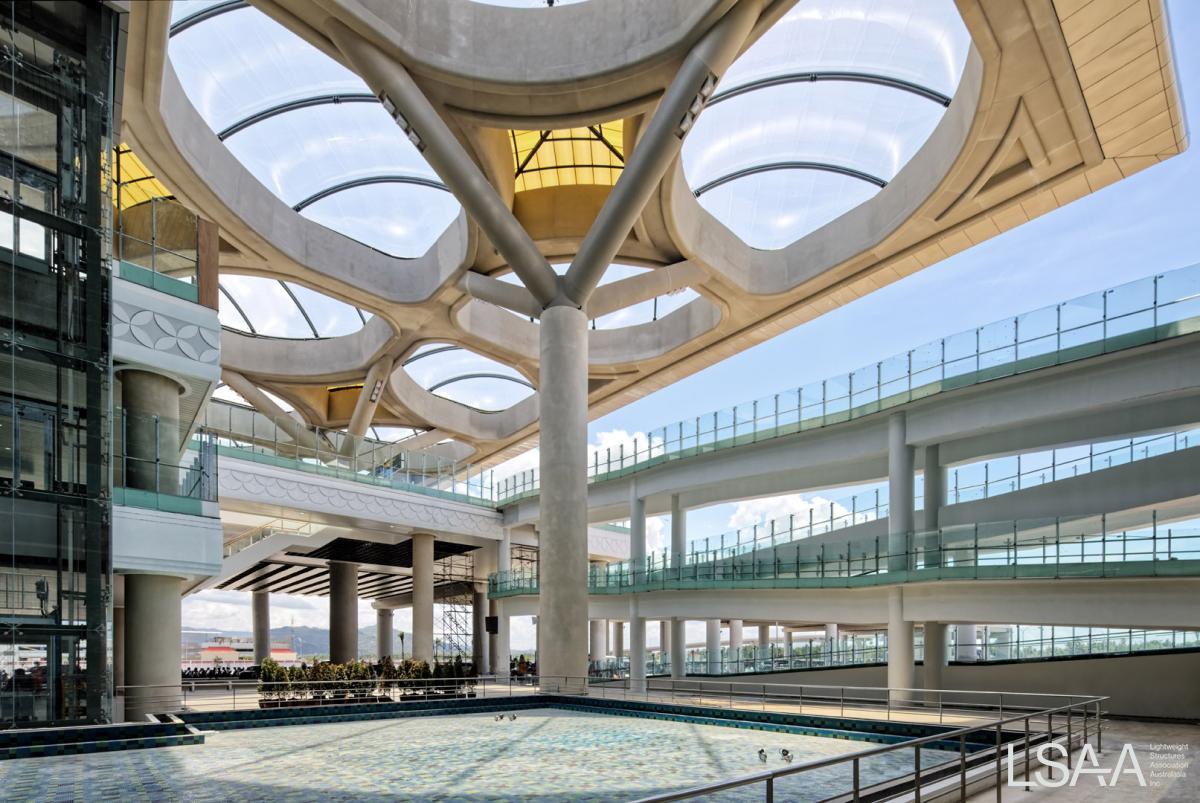

8139_10:  Daytime shot of ETFE roof from inside the airport terminal
8139_11:  Daytime aerial shot of the ETFE pneumatic cushions

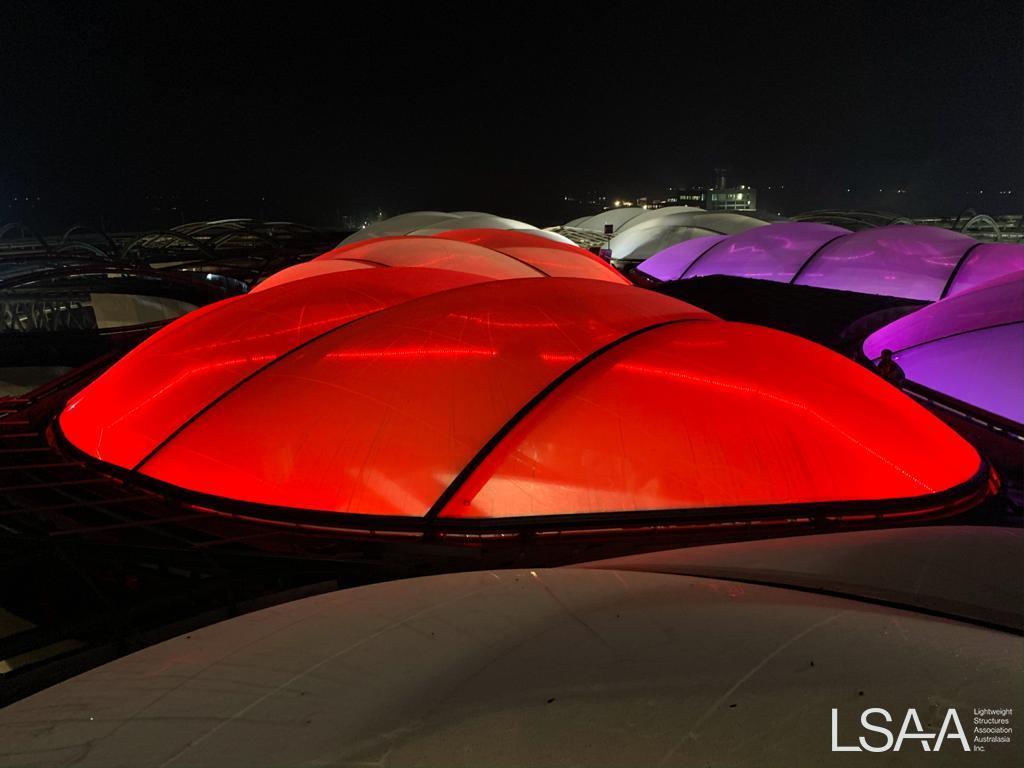

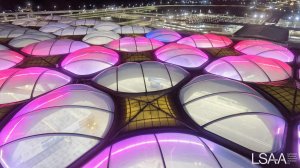

8139_12:  Night-time close up shot of ETFE cushions with LED lighting

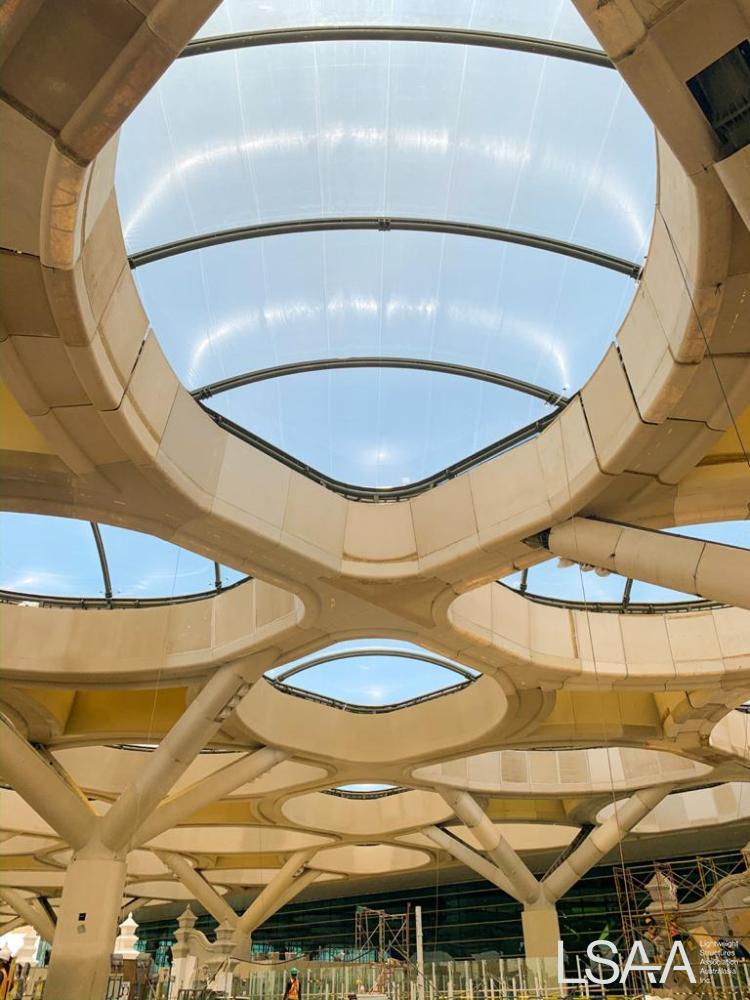

8139_13:  Daytime shot of ETFE roof from inside the airport terminal

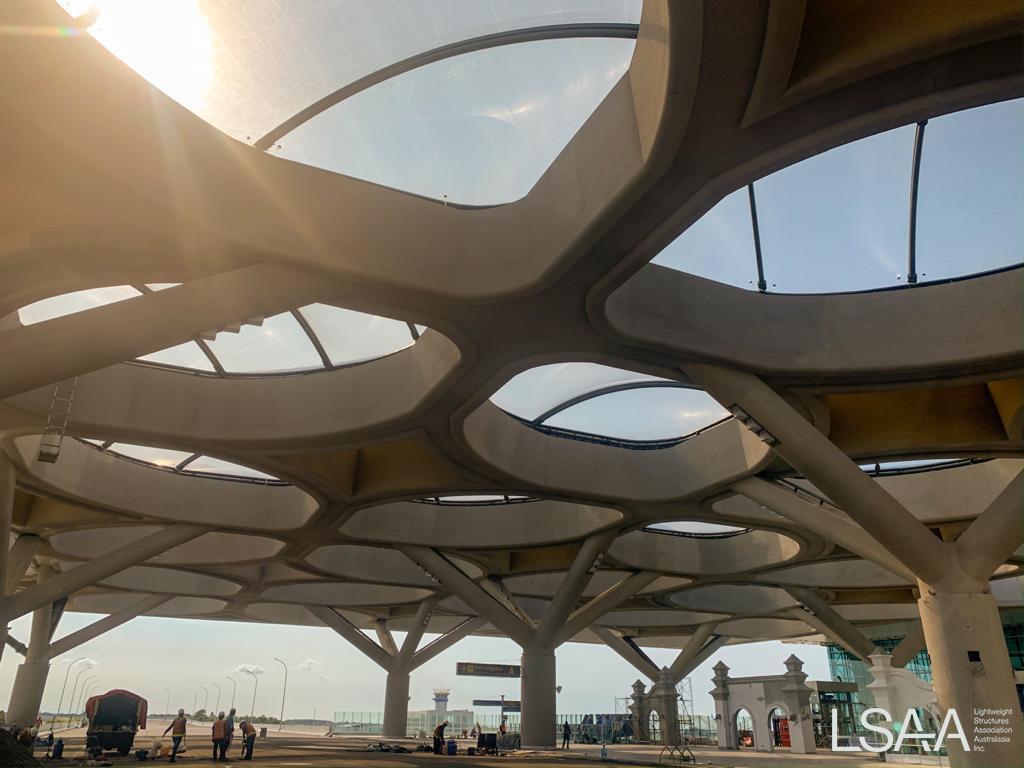

8139_14:  Daytime shot of ETFE roof from inside the airport terminal

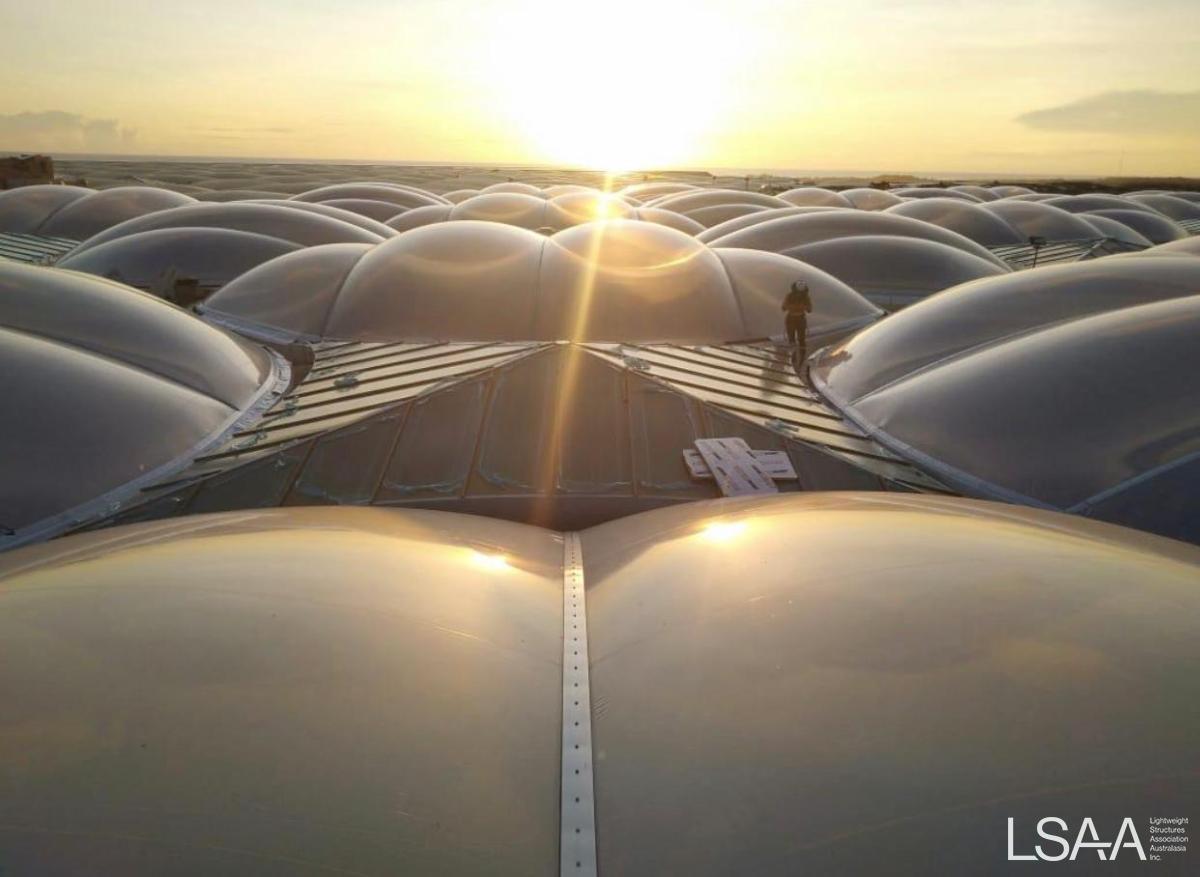

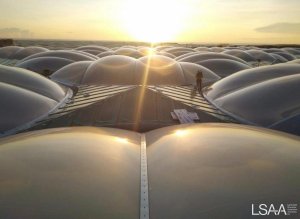

8139_15:  Dusk aerial construction shot of the ETFE pneumatic cushions

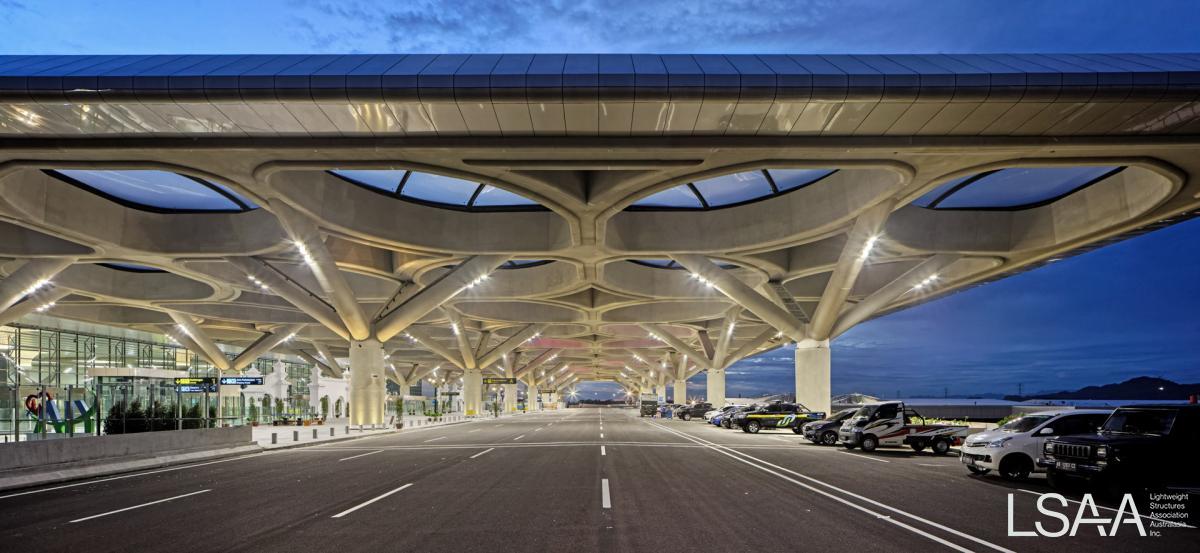

8139_16:  Dusk shot of ETFE roof from the road

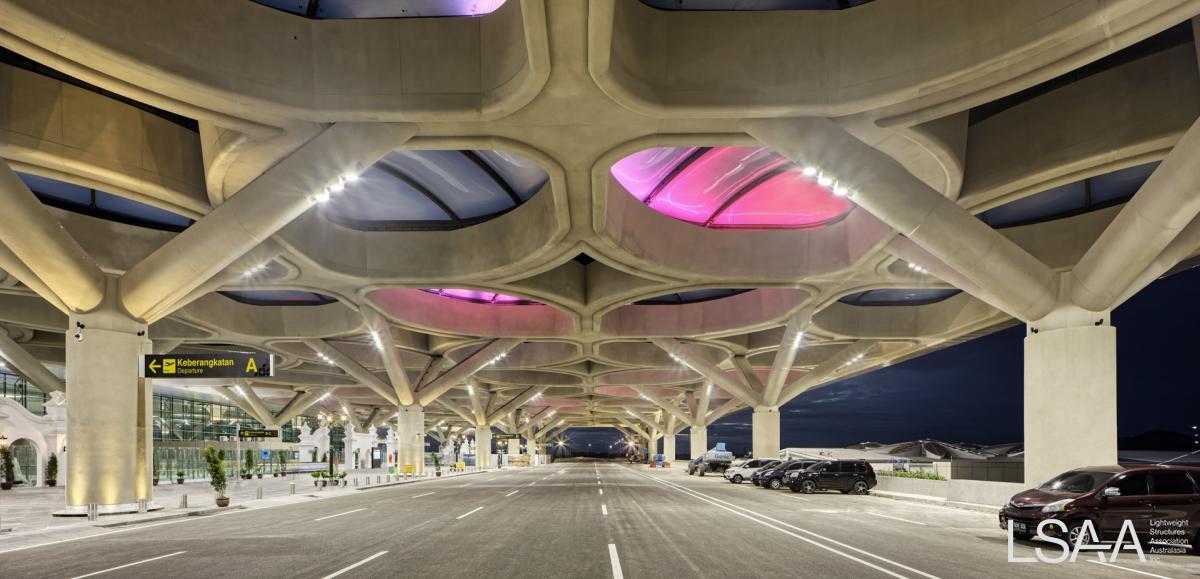

8139_17:  Night-time shot of the ETFE roof from the road with LED lighting
8139_18:  Panned daytime shot of ETFE roof from inside the terminal

OTHER INFORMATION

The client was super happy with the project and the end results are extremely captivating. There were no quality issues from inspections and our delivery was on time and on budget. The ETFE cushion canopy lights up with bright colours due to an LED lighting system that is incorporated on the underside of the cushions.

PROJECT CREDITS

Project Name:         Yogyakarta International Airport
Location:      Kulon Progo Regency
City:   Special Region of Yogyakarta
State: Yogyakarta, Indonesia

GPS Location:         -7.897955107159997, 110.06020173961903
Completion Date:    1-Jan-20
Preferred Category: 8 – International projects
Alternate Category: 4 – Large structures >1,000m2

Entrant Name:        Fabritecture
Address:       Unit 14/15 John Duncan Court, Varsity Lakes, QLD 4227

Telephone Landline: +61 7 5587 7000
Mobile:         +61 408 402 716
Email Address:        This email address is being protected from spambots. You need JavaScript enabled to view it.
Website Address:    www.fabritecture.com
Entrant Type / Role: Designer / Installation supervision
Project Client:         Interdesign
Structural Engineer: Maffeis Engineering
Fabricator(S):         Confidential
