There are several categories of "shade" structures which typically are constructed from knitted shadecloth in varying degrees of shade factor.

Shade structures for sun / hail and wind protection of large nurseries have been common in Australia since the mid 1980s.

Similar shade structures utilizing seat belt webbing as edge cables have been applied to protect cars from sun and hail in Australia, USA, South Africa and other regions.

Since the increased awareness of UV related issues, there has been many shade panels installed in playgrounds and schools.

One of the issues is that the shaded area at ground level - or where kids are playing - is not in the desired location because the changing angles of the sun at different times of the day and for different seasons have not been calculated.

There is a larger number of contractors operating in the supply of domestic and small scale shadecloth structures and the pricing competition on these systems has often lead to unsafe cost cutting measures being taken. In many cases structures have been built without certification by a competent structural engineer. There has been many cases where footings and cantilevered columns are totally inadequate for the horizontal loads generated.

Another issue is the large deflections of these structures under hail loads and wind. Often there is very small amounts of fabric prestress.

Shadecloth structures are generally made from separate panels of knitted shadecloth to provide a degree of shade and hail protection. This can lead to unprotected areas between panels. Refinement to the panel layout could be to overlap panels and/or to join the mid-edges of adjacent panels.

School playground with shadecloth cover
School playground with shadecloth cover

Knitted shadecloth panels are often used to provide shade over playgrounds in schools and council areas.

2023 09 PWK playground

These panels deflect much more than the stiffer coated fabrics we use in lightweight structures and sufficient clearance must be allowed for above slides, castles and other objects. It is also important that the actual area required to be shaded is calculated correctly allowing for the different seasons and time of day.

The following video represents the movements in a wind estimated to be about 60 kph. (Courtesy Peter Kneen)

Scarborough Foreshore Shade Structures
Scarborough Foreshore Shade Structures



Award of Excellence: LSAA 2018 Design Awards Shadecloth Category (3232)

APPLICATION OF PROJECT

A series of bespoke architectural shade structures

PROJECT DESCRIPTION

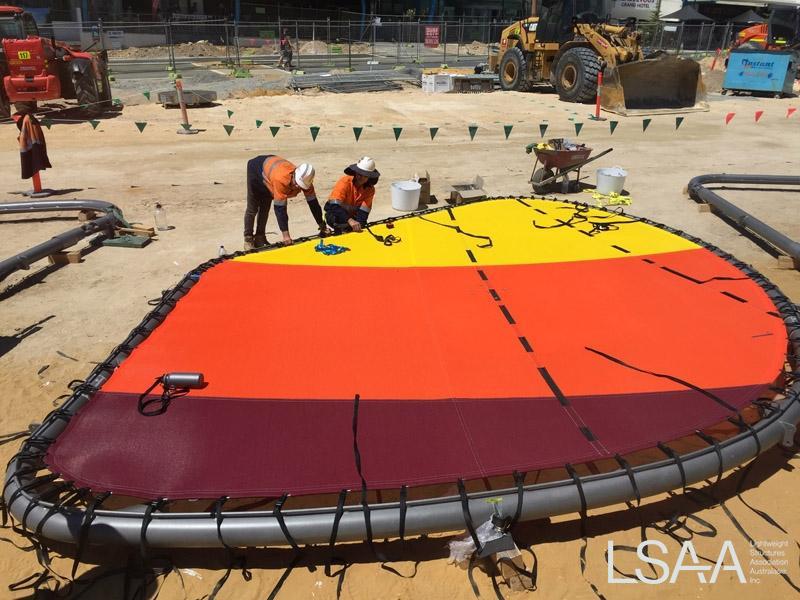

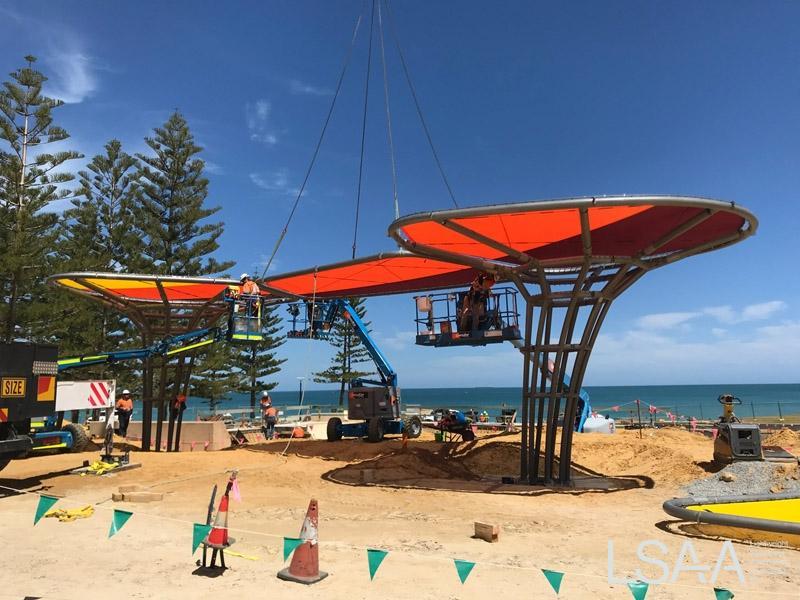

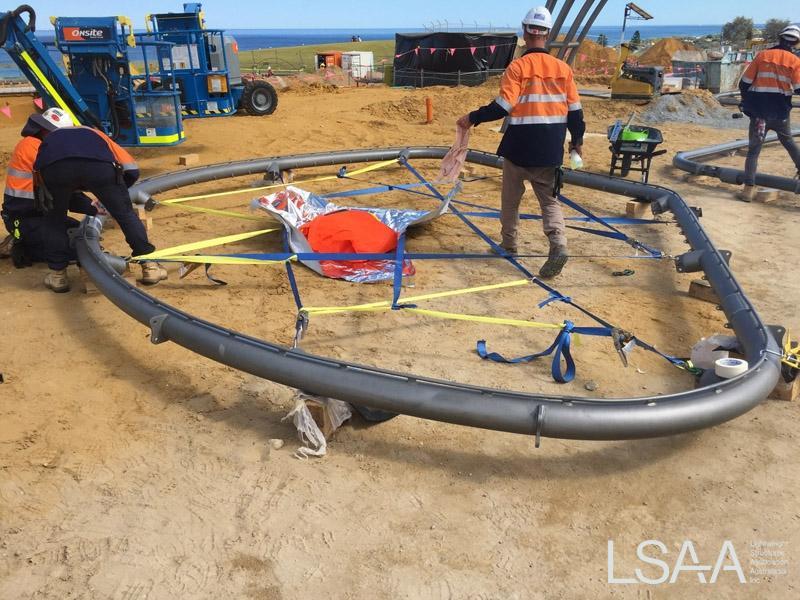

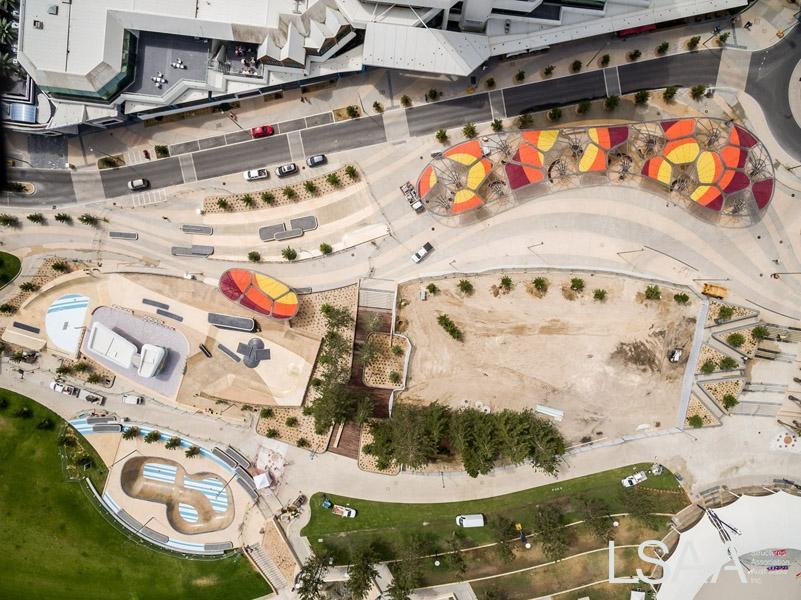

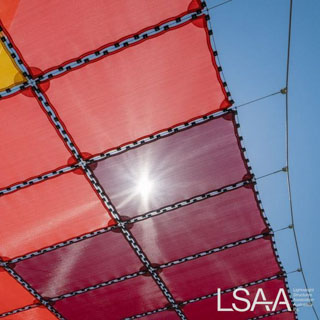

Our scope of the Scarborough Foreshore project included the design & construction of three steel-framed arbour structures that were to be installed as part of a regional redevelopment of Scarborough.

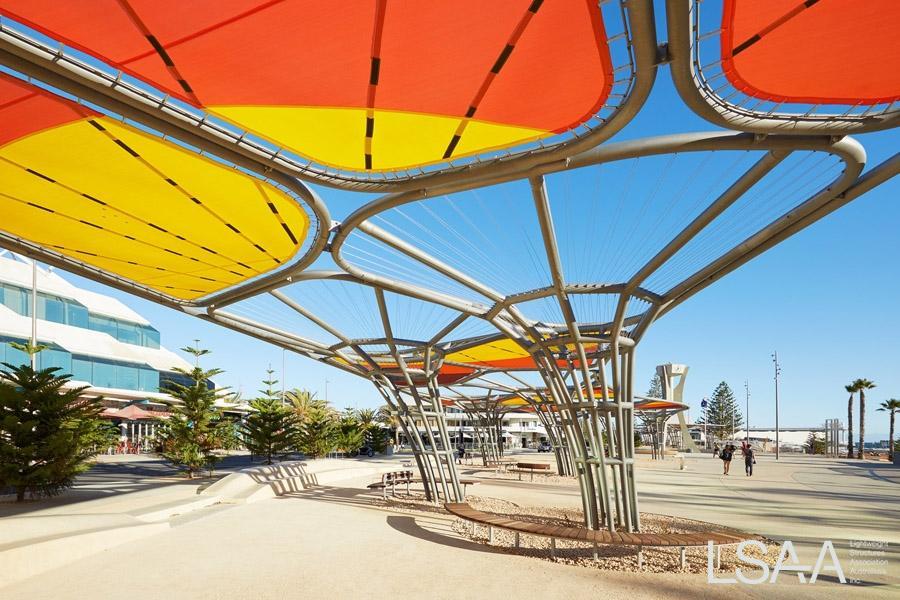

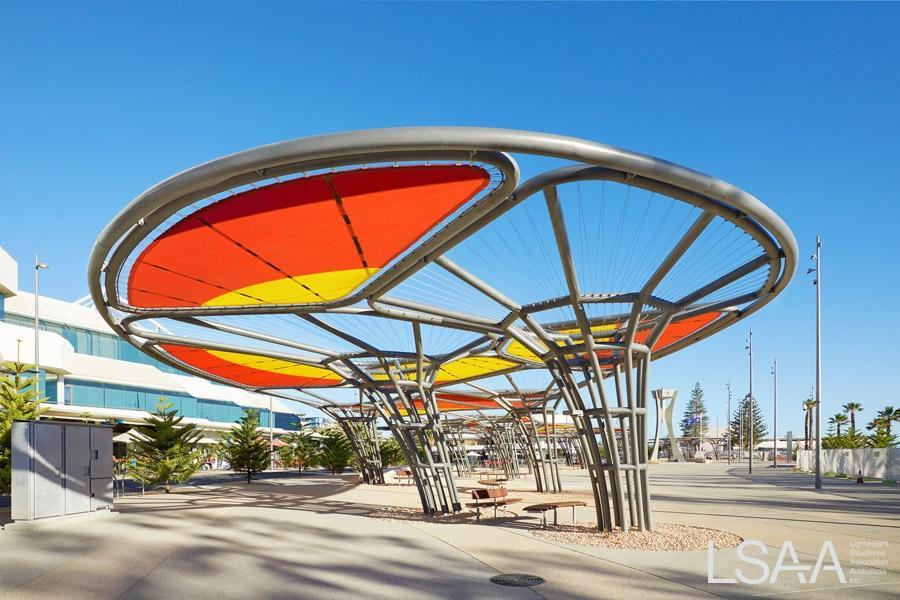

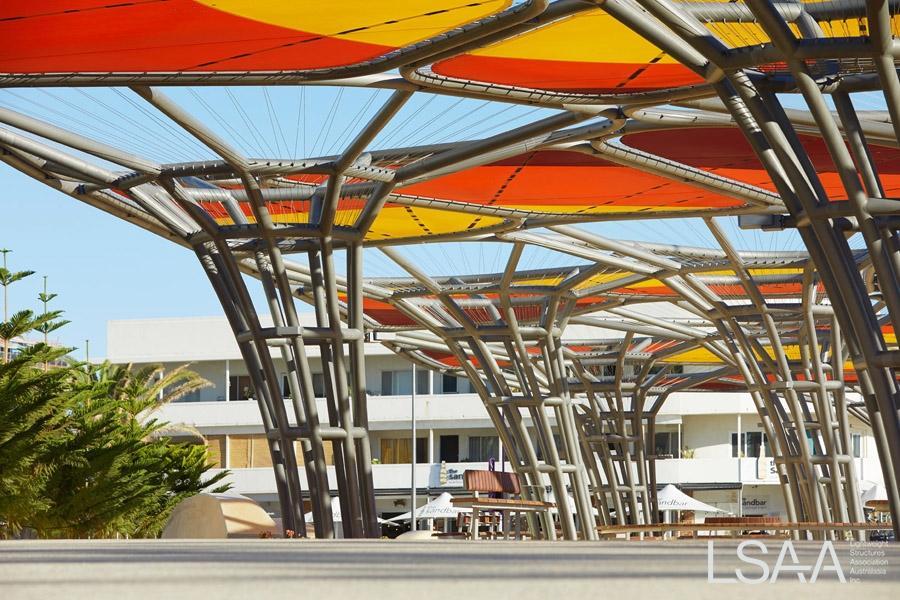

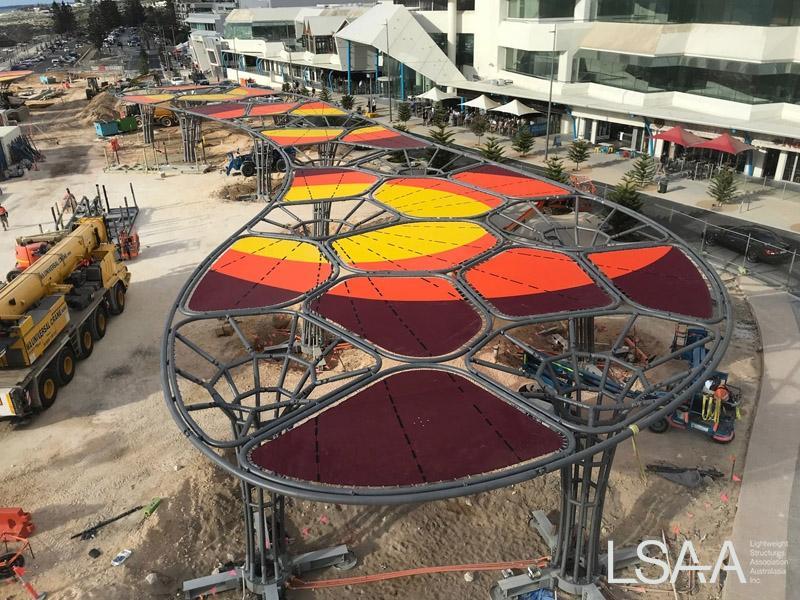

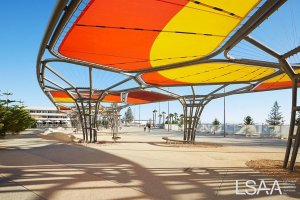

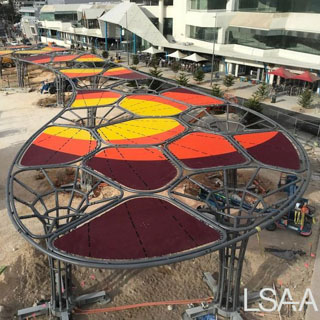

The structures are comprised of 31 architectural ‘tree-like’ stands that support the mesh & realise the architectural vision of the structures. They are placed along the South beachfront, North beachfront, and Intergenerational Plaza of Scarborough

323204
323203
323207
323206
323205
323202
323201
323208
323212
323211

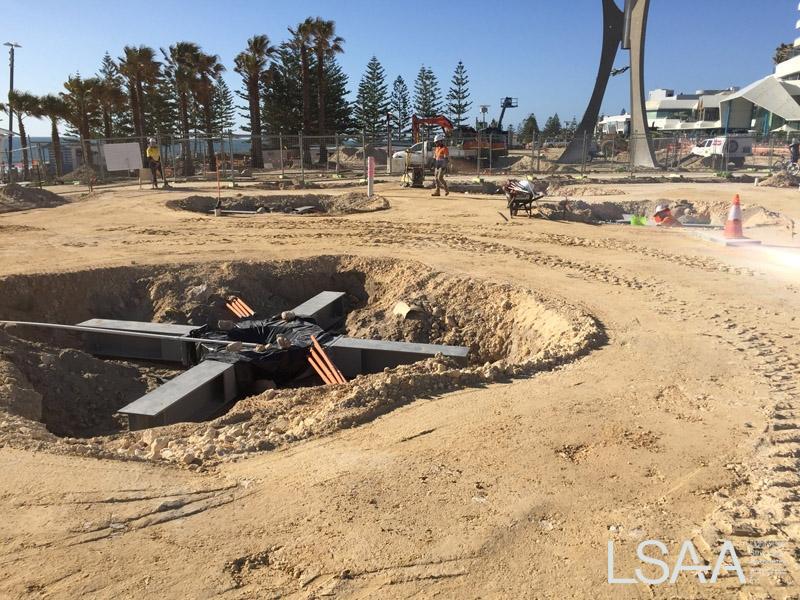

323209
323210

Photo Credit: Photography Project

Yeppoon Shade Structures Project
Yeppoon Shade Structures Project (2018)



LSAA 2018 Design Award Entry

Architectural shade canopy over a skatepark

PROJECT DESCRIPTION

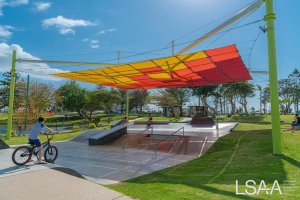

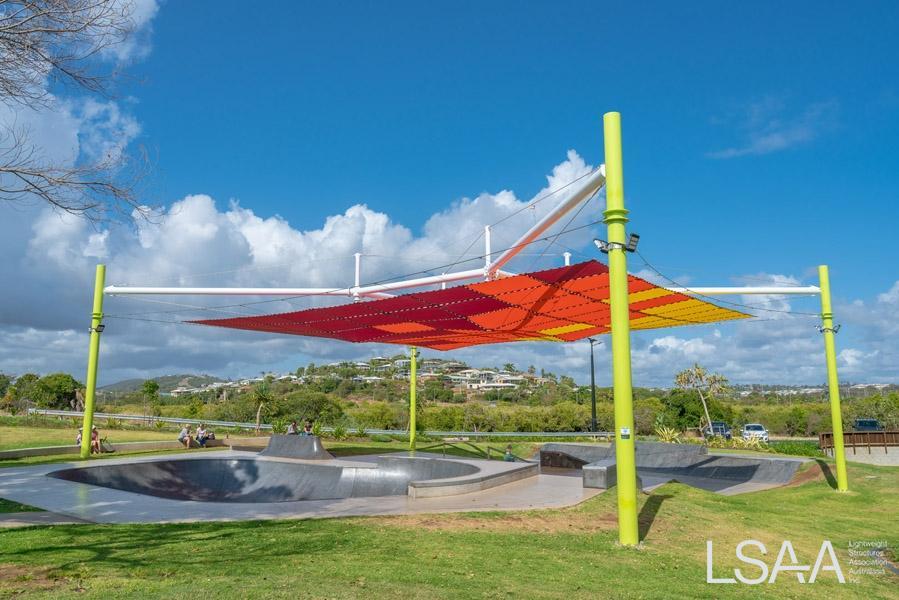

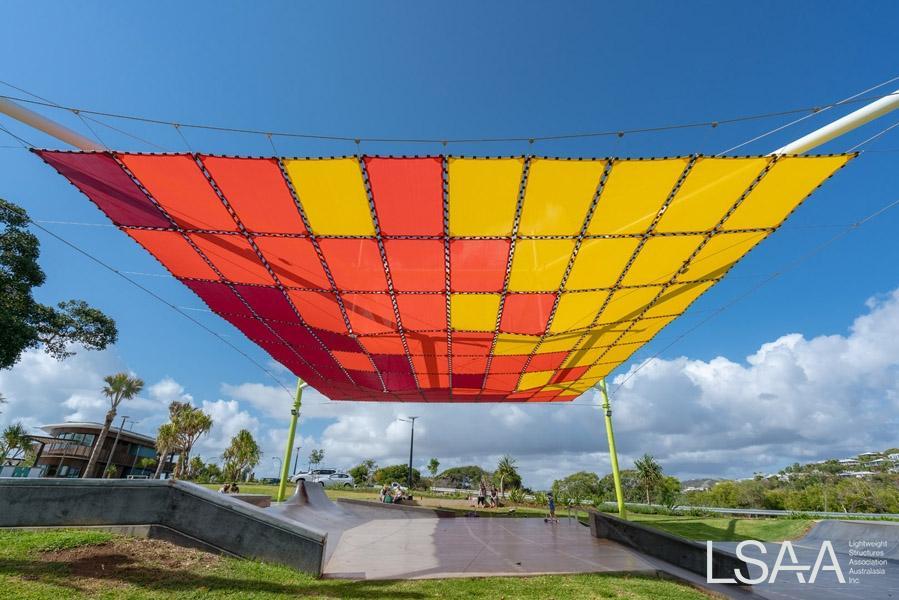

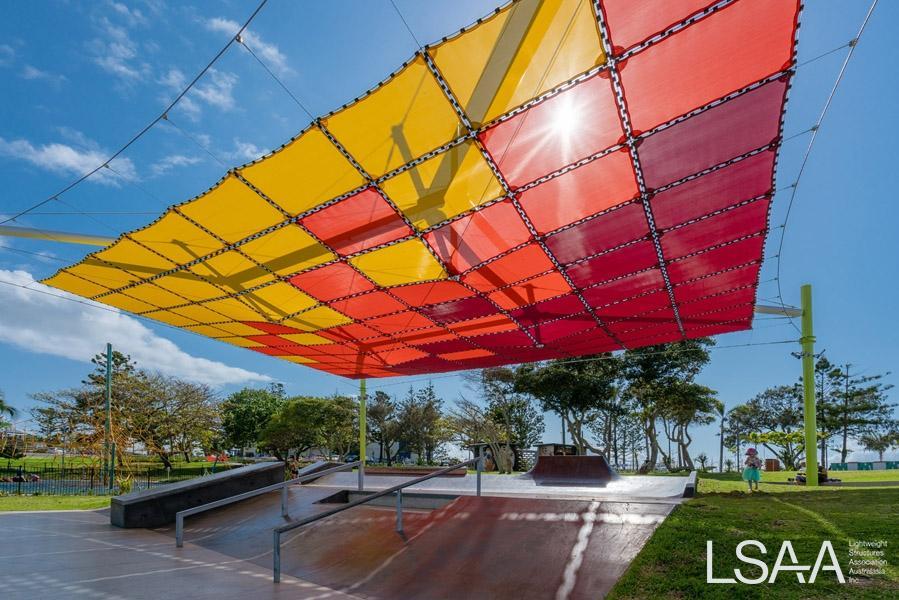

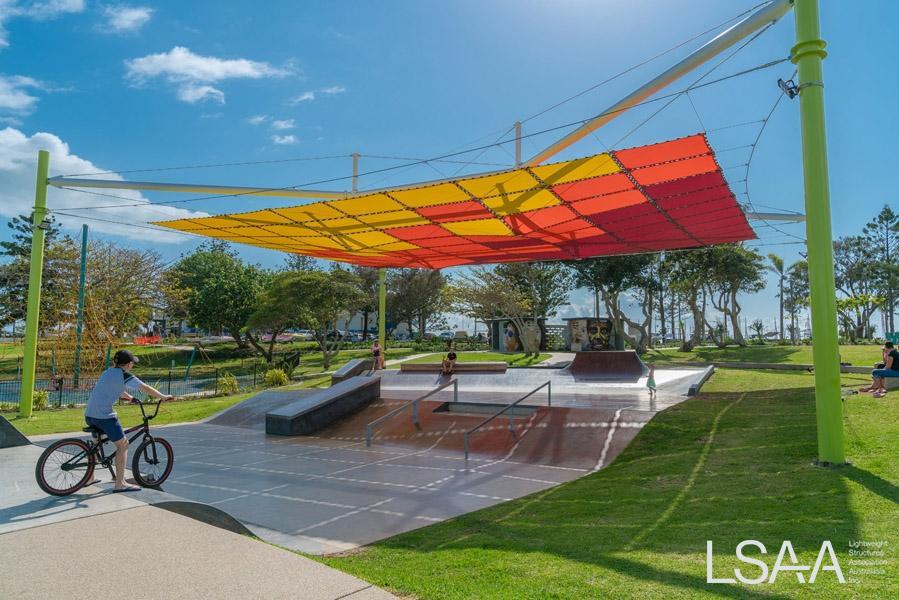

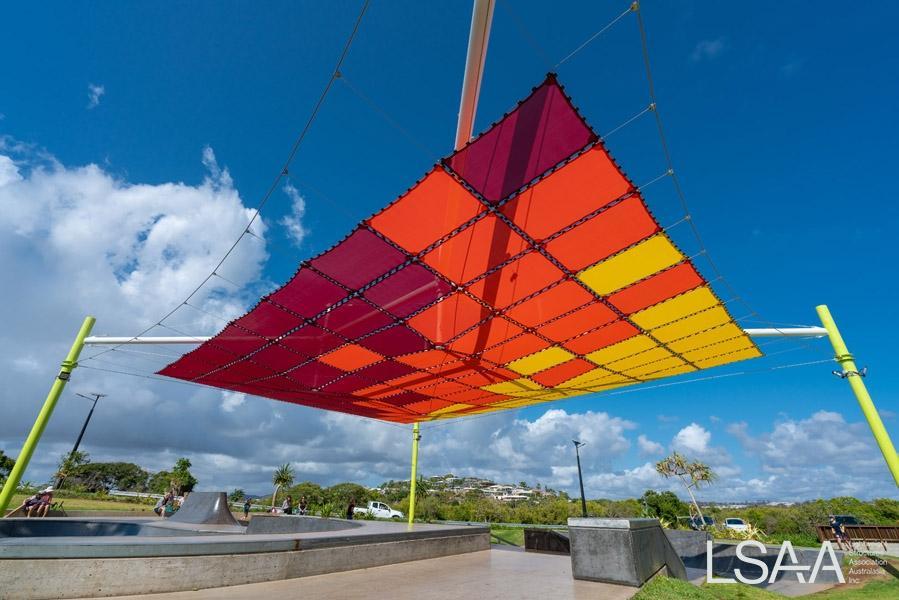

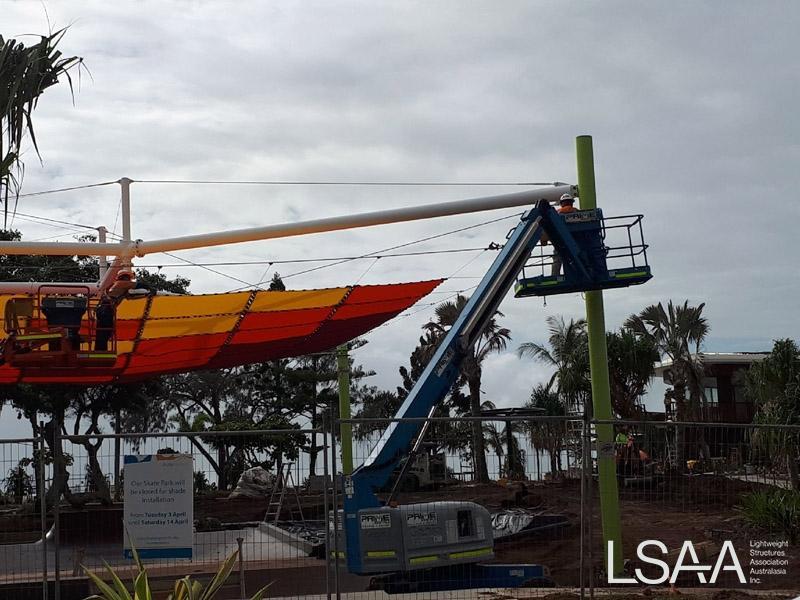

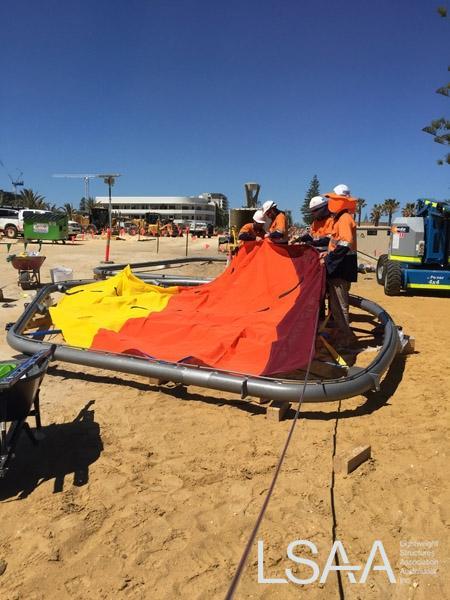

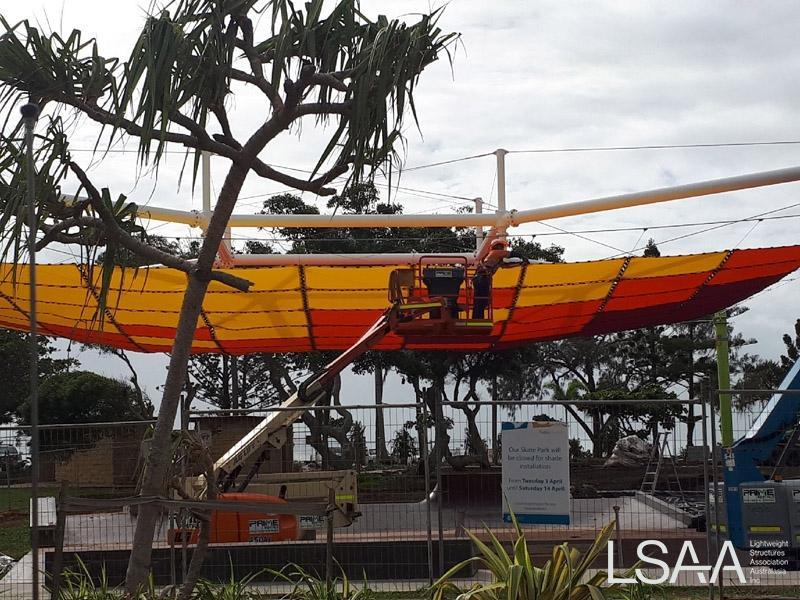

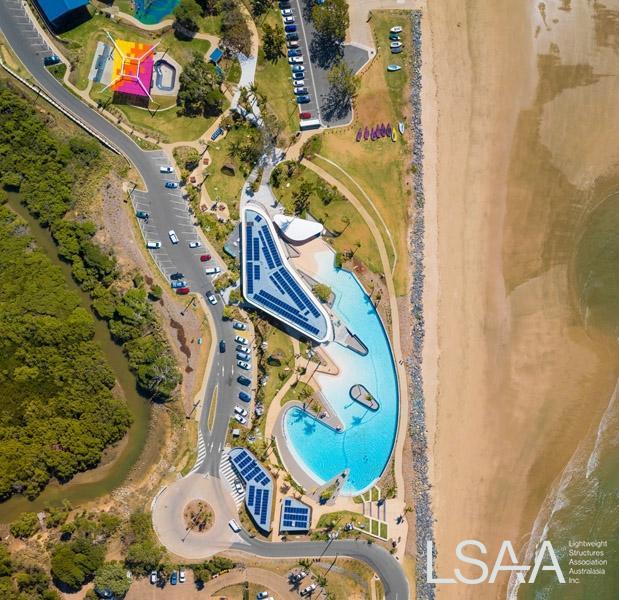

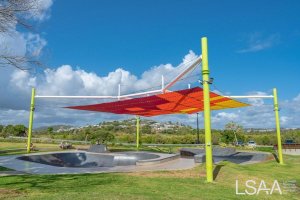

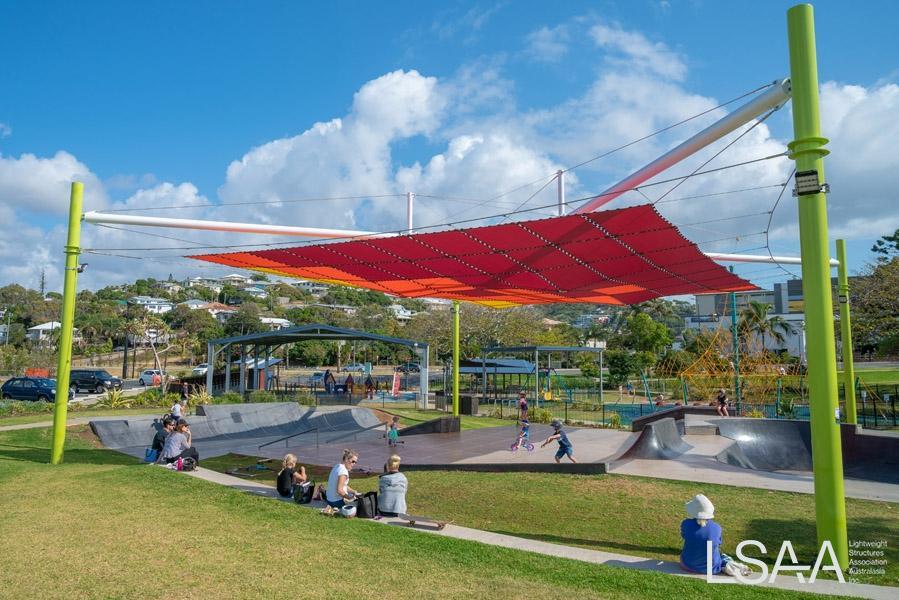

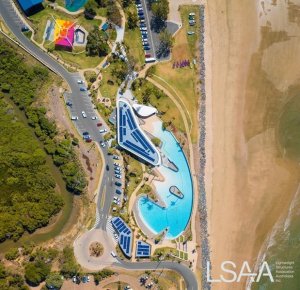

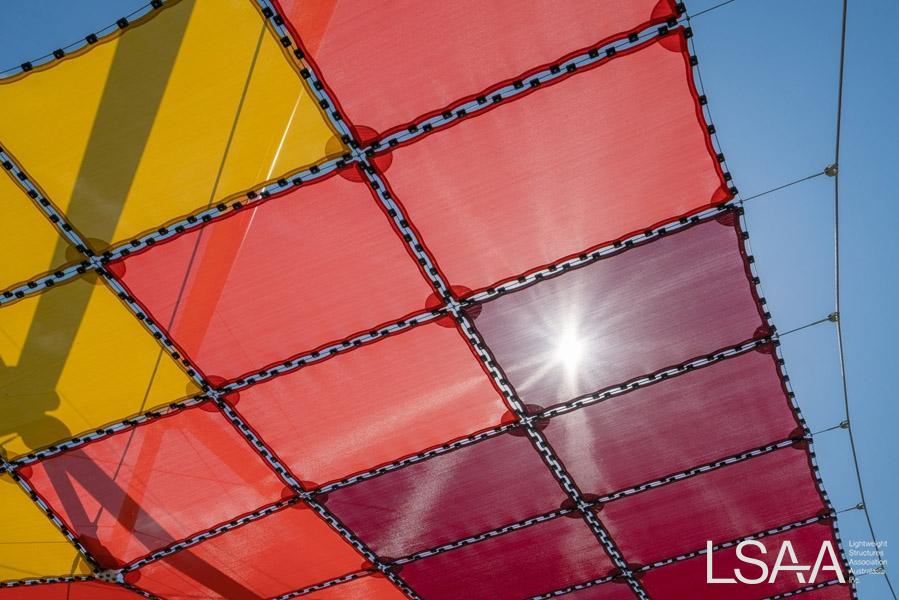

Livingstone Shire Council were looking for a unique solution to traditional hypar shade structures when planning for the skatepark redevelopment at Yeppoon Lagoon. The shade structure was designed to become a focal point of the skate park. It’s a shade structure, but it’s also a colourful, fun, artistic addition to the outdoor sport facility.

313605
313620
313609
313608
313607
313606
313604
313603
313602
313601

Photo Credit: Nathan White

Piara Waters
Piara Waters



Project entered in the LSAA 2016 Design Awards (Shadecloth Structures #3225)

Entrant: Fabritecture (Designer and Installer)

Location: Armadale, WA.   Completed: July 30 2014  Client: McCorkell Constructions
Team: Donovan Payne Architects, Greenup Design International, Fabritecture, Fabric Solutions Australia

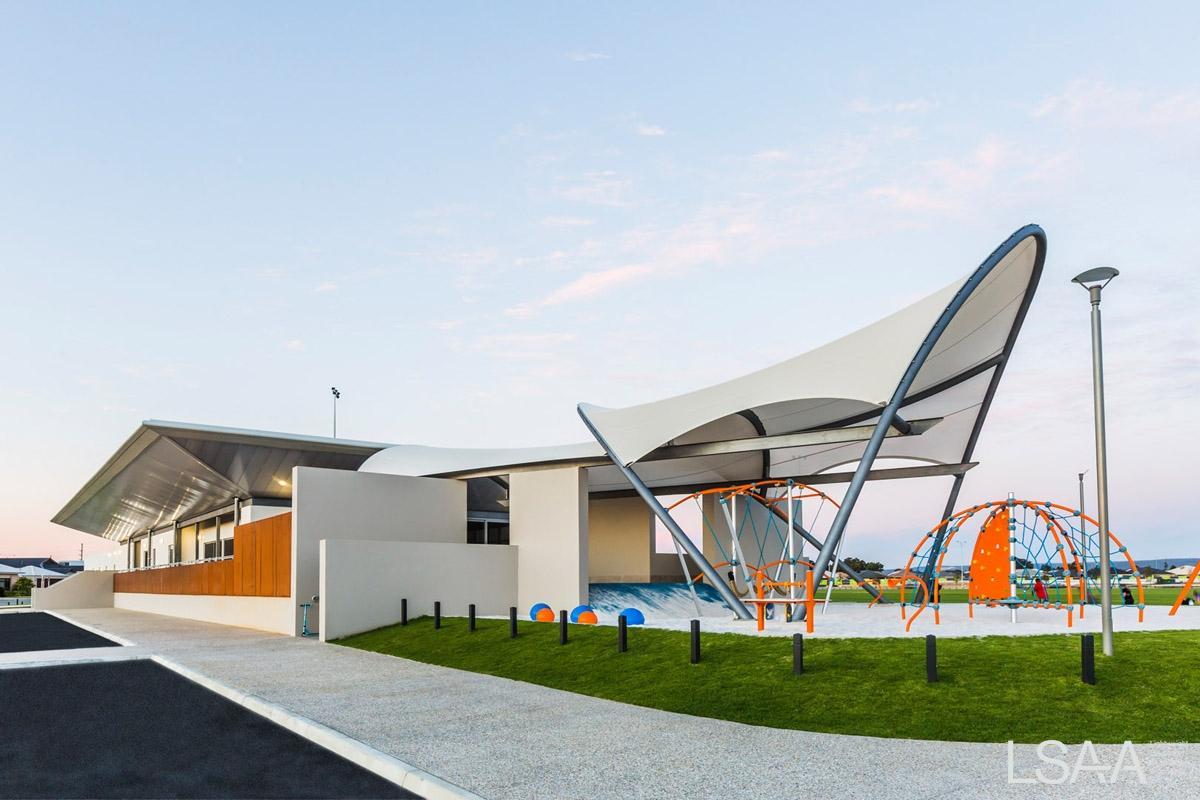

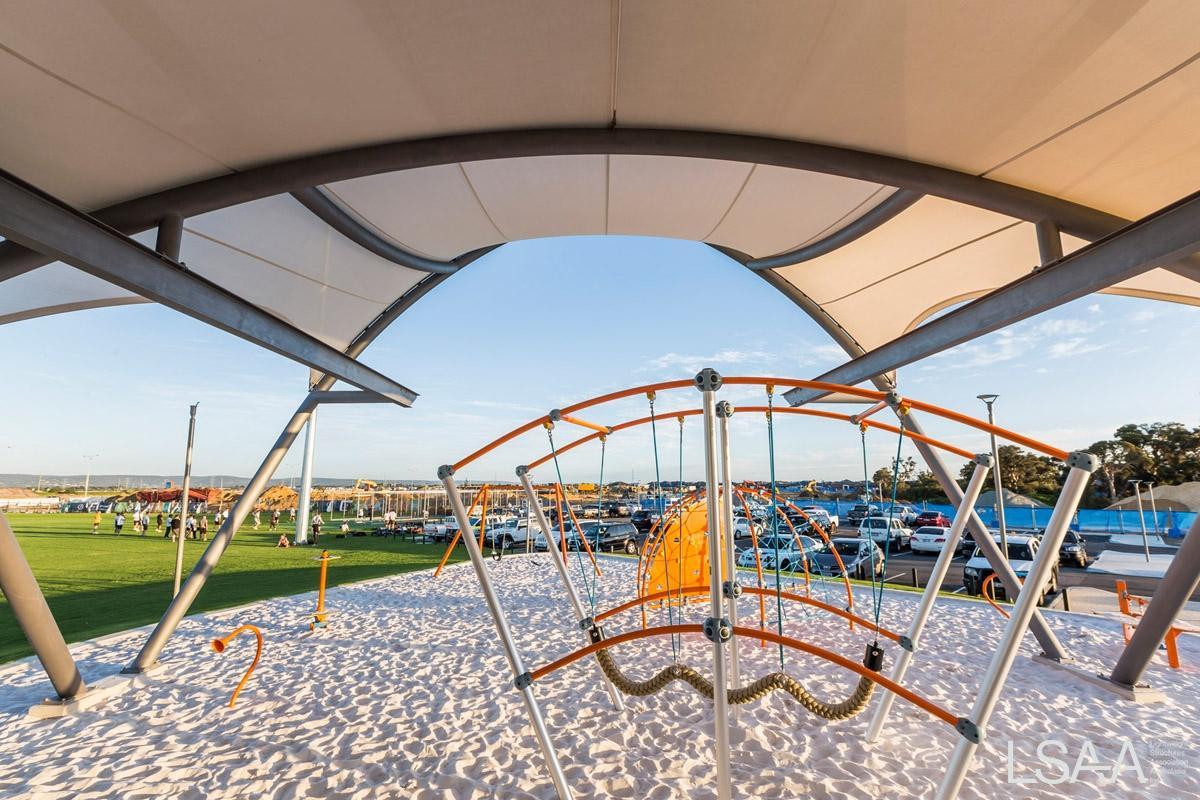

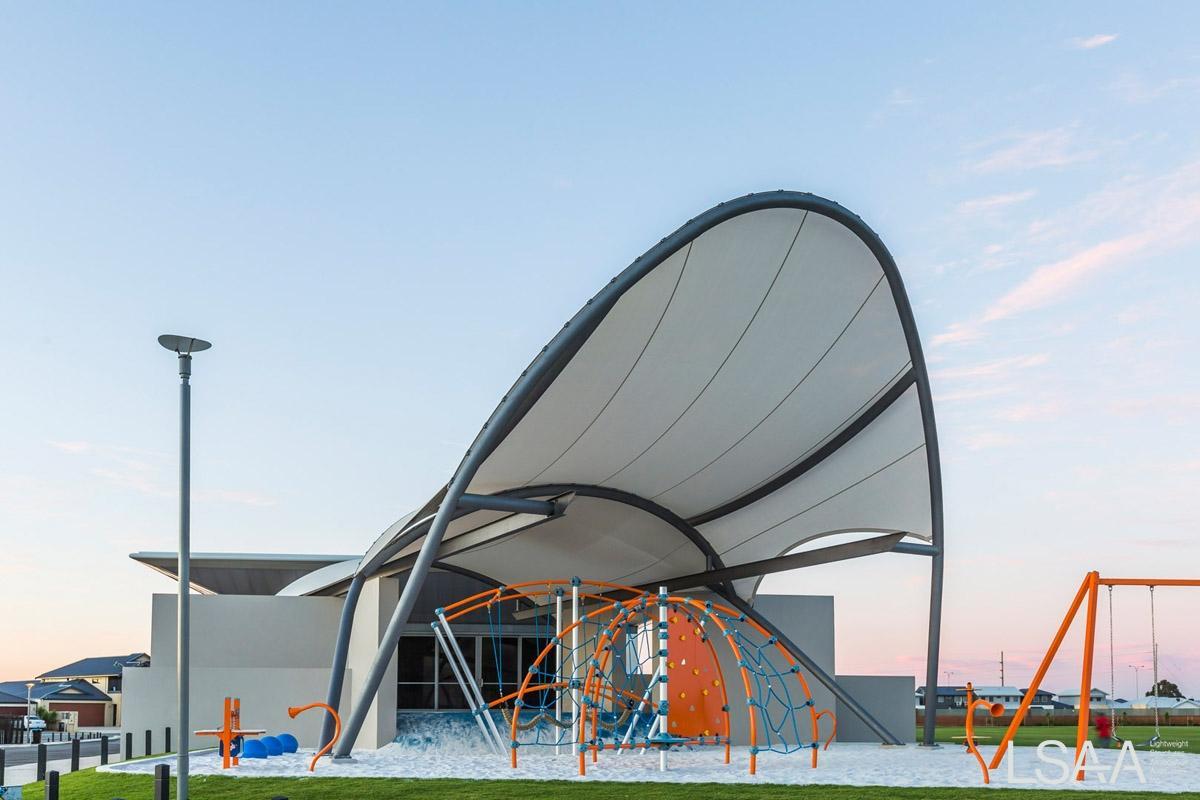

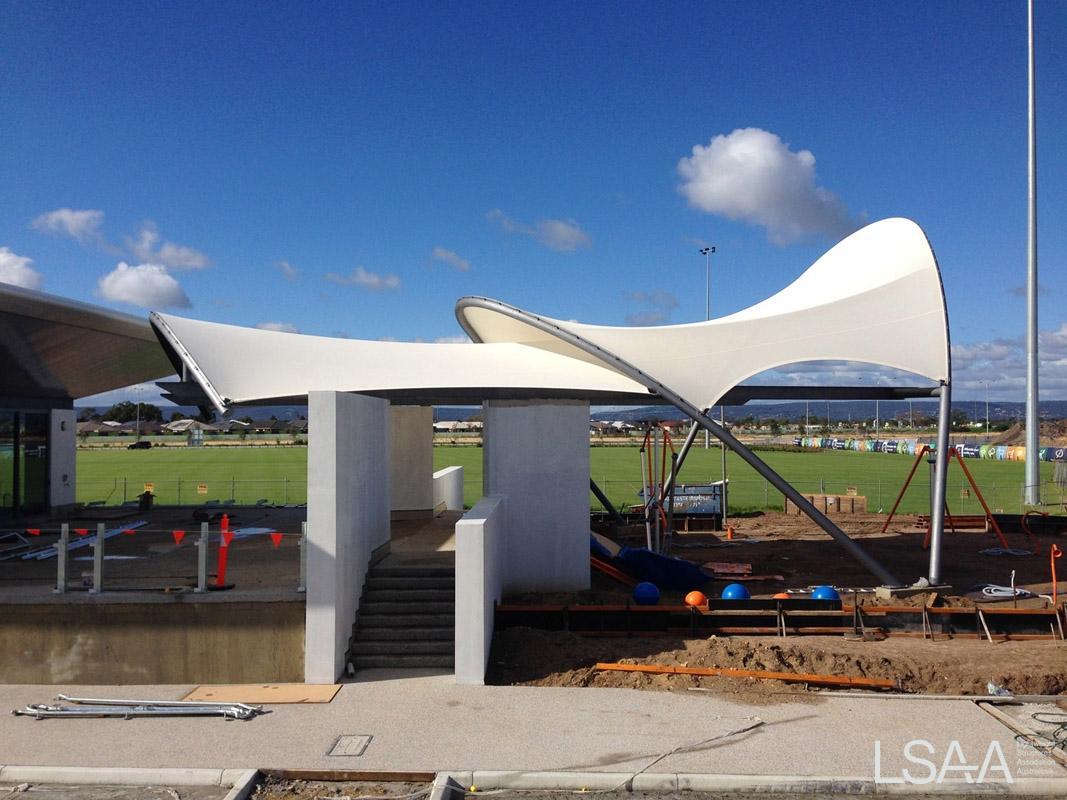

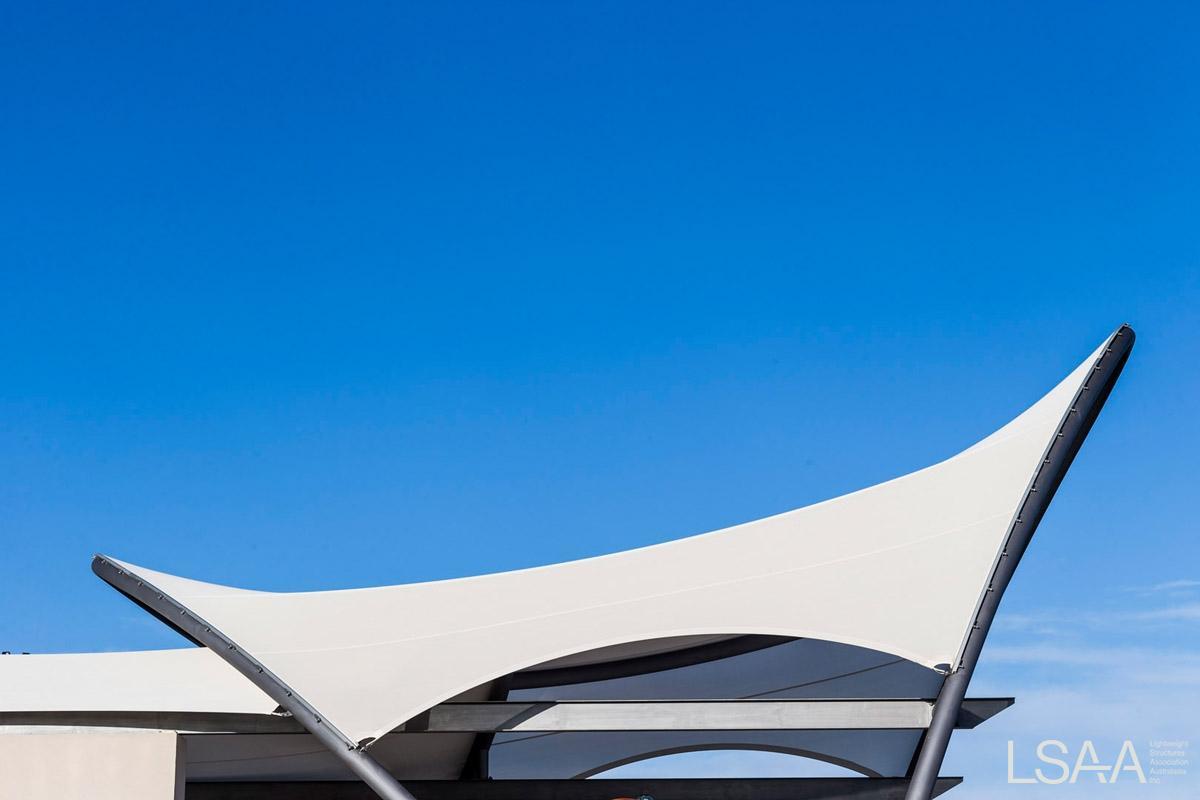

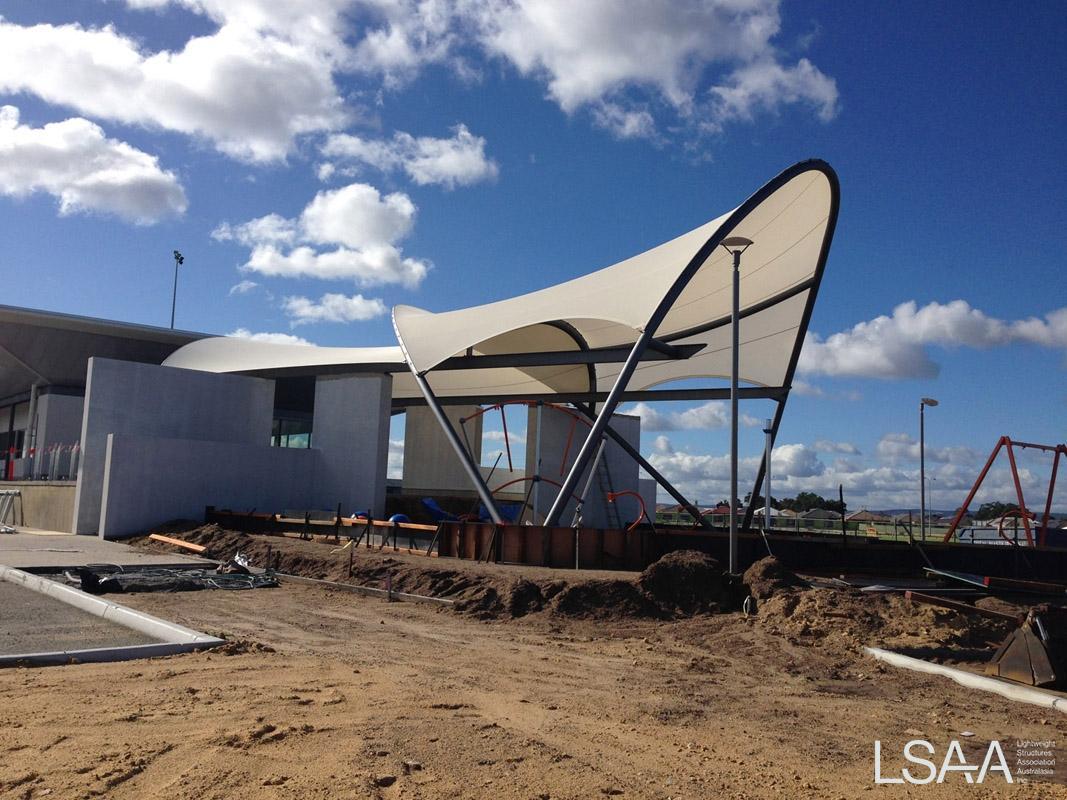

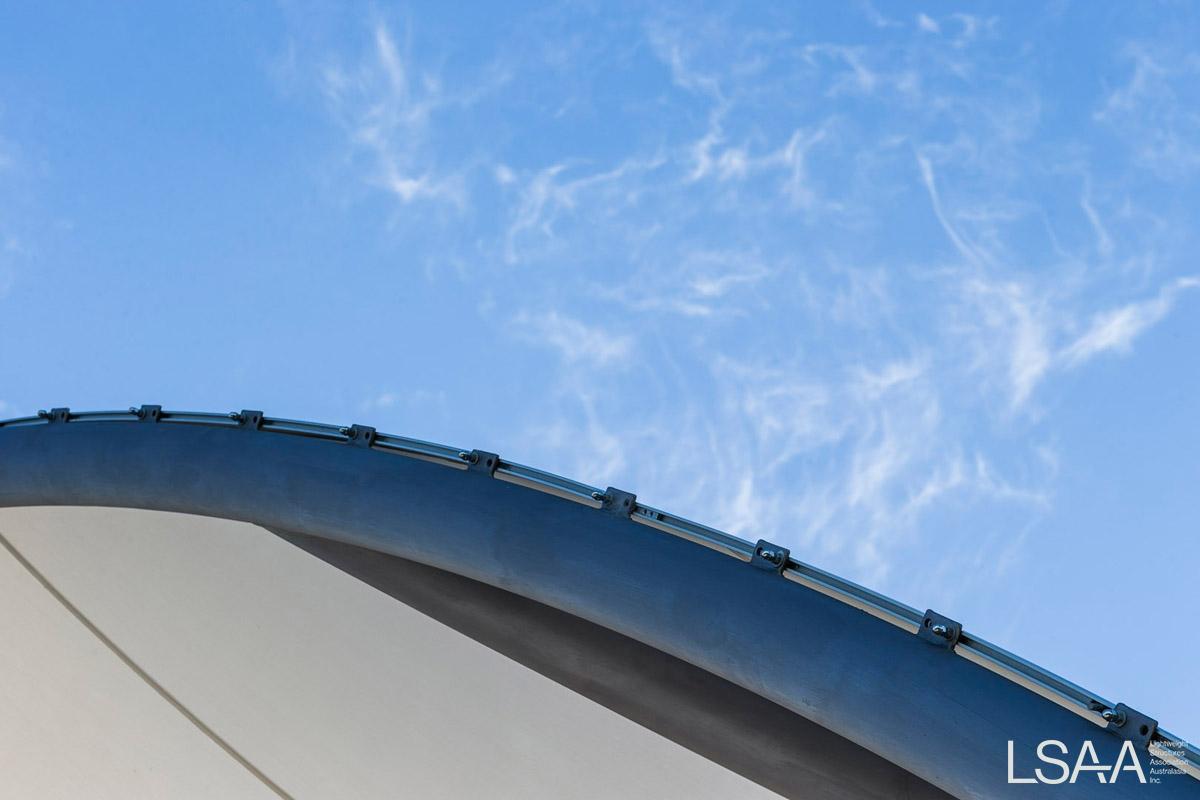

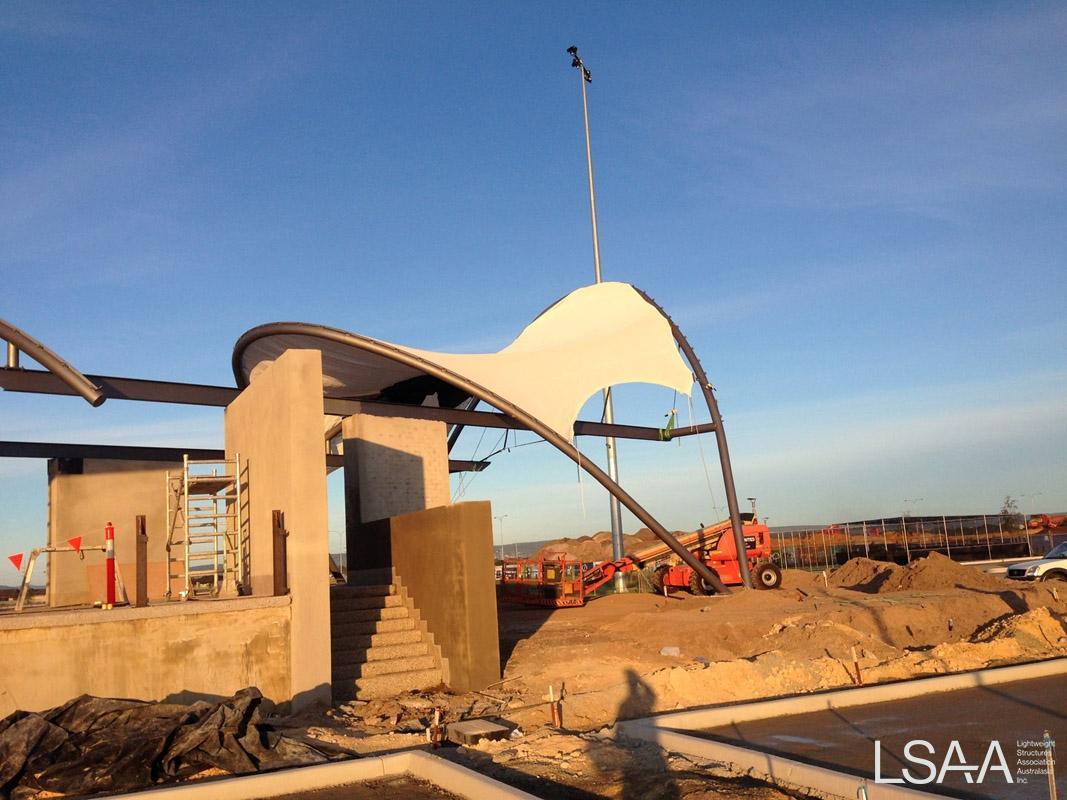

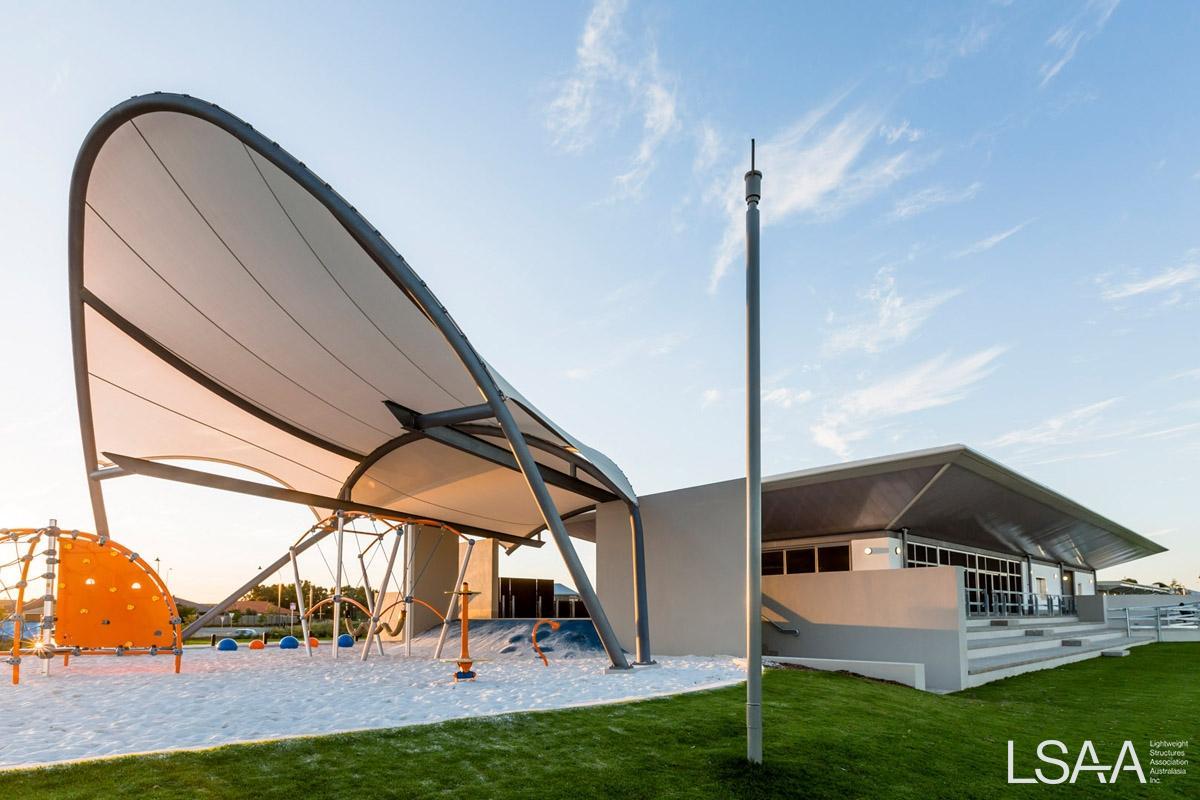

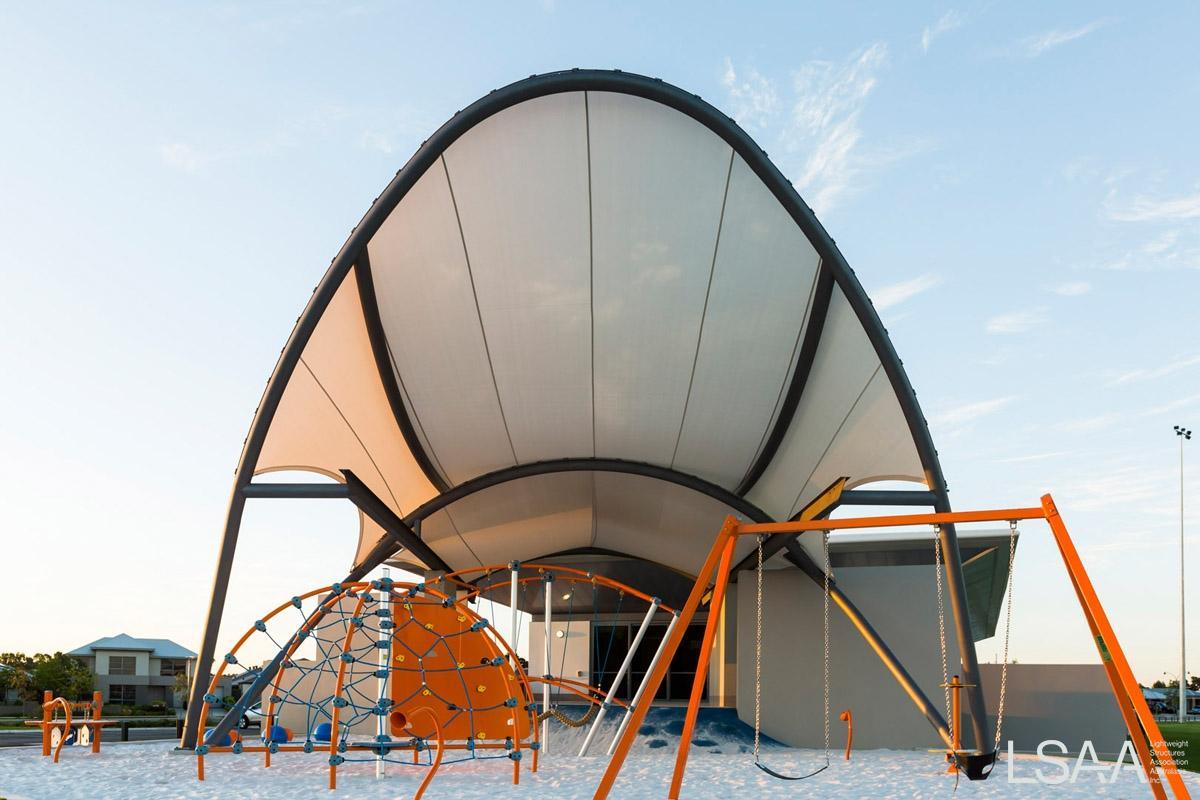

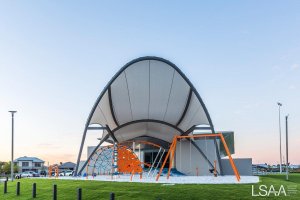

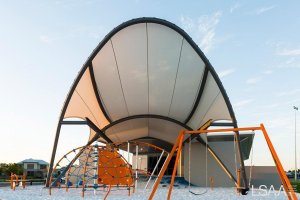

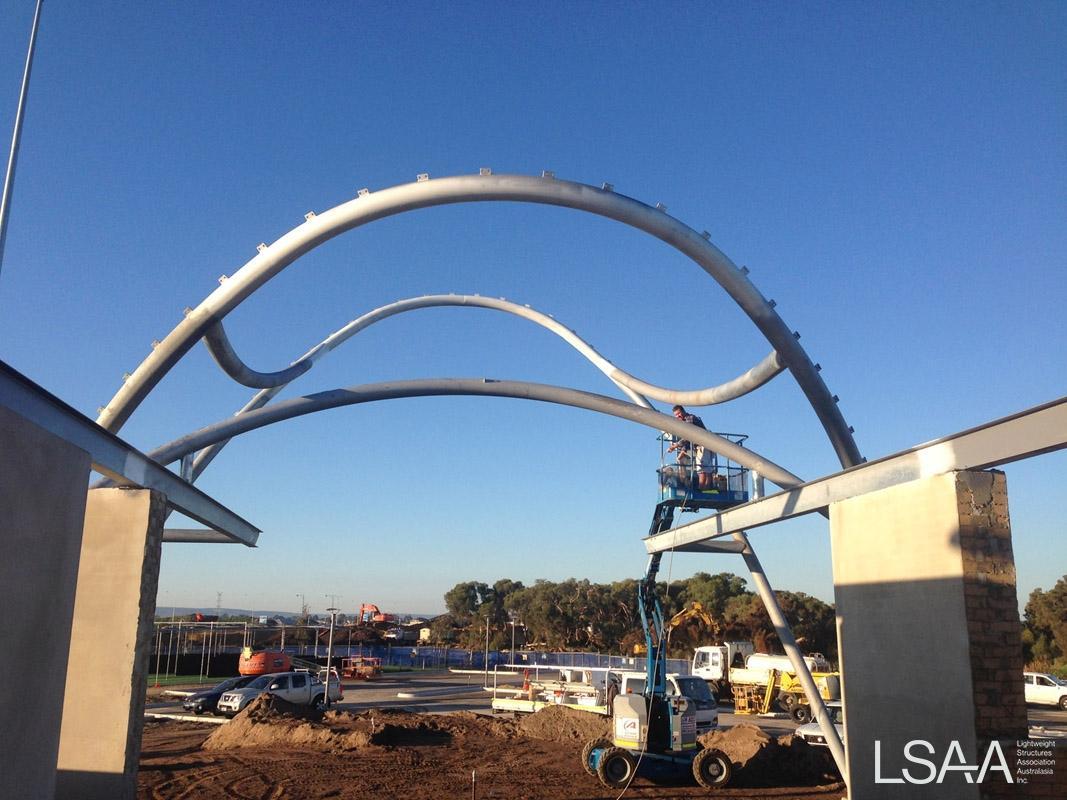

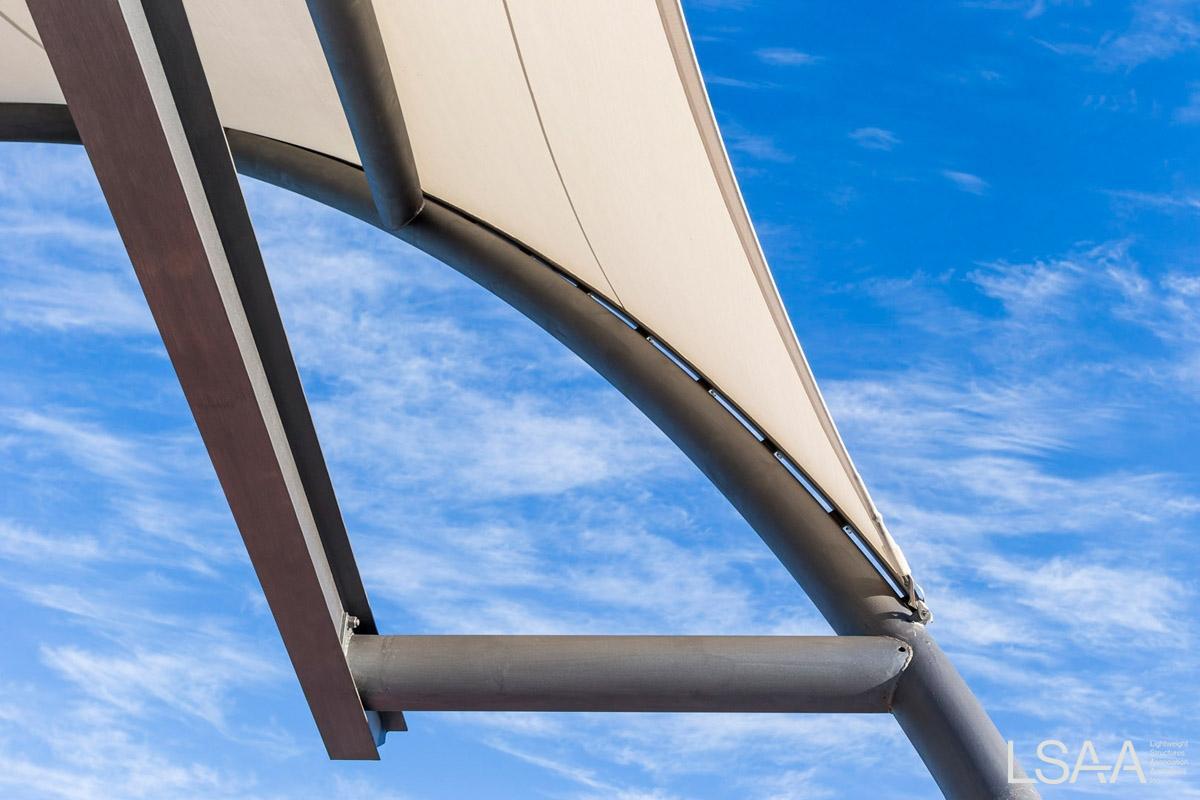

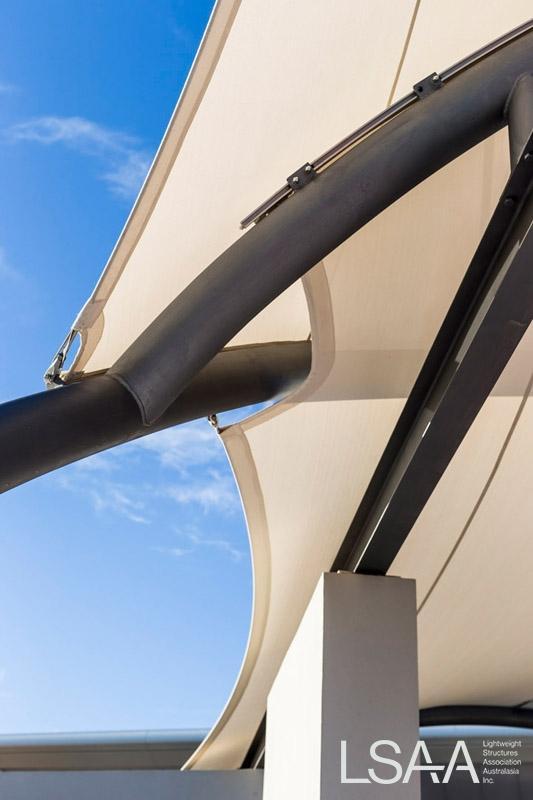

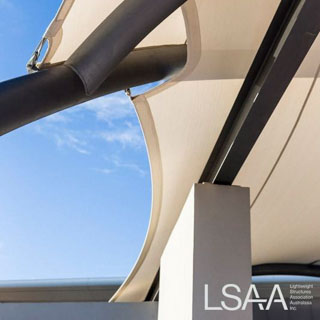

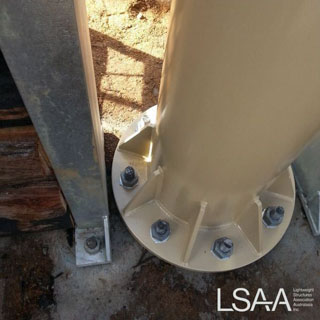

Application: Shade structure designed to cover an alfresco and playground area as part of the Stage 2 works of a new Sporting Pavilion

The images below were taken by James Simmons Portrait and Wedding Photography

3225001
3225019
3225018
3225017
3225016
3225015
3225014
3225012
3225010
3225009

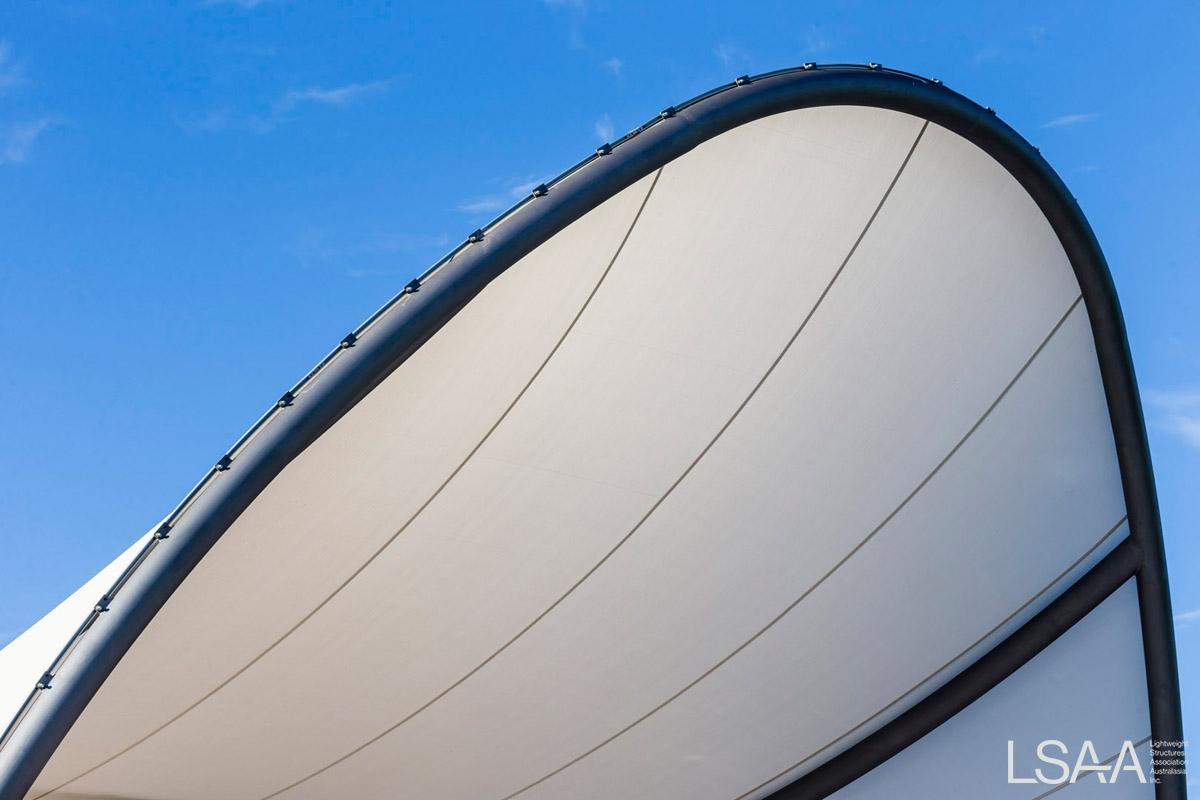

3225007
3225006
3225005
3225003
3225002

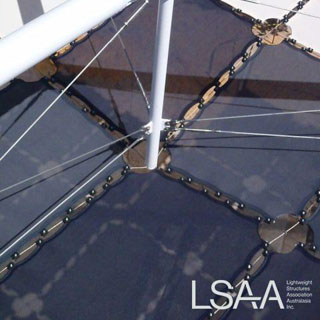

Sea World Polar Bear Enclosure
Sea World Polar Bear Enclosure



Project entered in the LSAA 2016 Design Awards (Shadecloth Structures #1332)

Entrant: Shade And Membrane Structures Australia (Design / Project Management / Install)

Location: Sea World.   Completed: December 1, 2013  Client: Village Roadshow Theme Parks

Team:  Osborn Lane / Global Membrane Design and Alliance Design Group, Astute, Shadecom

Application: To provide a shaded solution for the impending birth of the new Polar bear cub “Henry”

1332---18
1332---11
1332---19
1332---17
1332---15
1332---14
1332---13
1332---12
1332---8
1332---7
1332---6
1332---20
1332---21
1332---9
1332---5
1332---2

Nambour Hospital Shade Structures
Nambour Hospital Shade Structures

This Project was entered in the LSAA 2013 Design Awards (Cat 3, 3351)

Essentially the purpose of the project was about cost effective space creation.

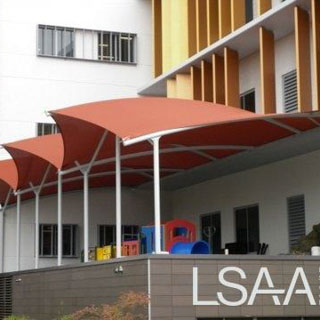

The tensioned awning is positioned over a deck area on the first floor at the Nambour children’s hospital. The Hospital is located on the side of a steep incline, the deck is located in an elevated position.

The awning-covered deck now allows children recovering from surgery or illness to play outdoors on the deck in supervised shaded conditions. Previously children were confined to an internal hospital playroom.

335101
3351011
3351010
335109
335108
335107
335106
335105
335104
335103
335102

Cockburn Town Square
Cockburn Town Square

This project was entered in the 2013 LSAA Design Awards (Small Structures, 1301) by Fabritecture

Cockburn Town Square

  • Location: Cockburn Town Centre
  • Client: Phase 3 Landscapes
  • Completion Date: February 2013
