Large Fabric Structures

For the LSAA, Large fabric structures have generally been thought of as those that have a fabric surface area greater than 1000 square metres. These structures may be described as single surfaces or panels in the form of one of the classic hypars, barrel vaults, cones, panels with single or crossing arches - or a combination.

Larger fabric structures can also be made from several modules or panels of similar forms to build up a substantial sized structure. The multiple panels might be arranged in a linear layout, or in a circular or oval pattern commonly found in stadia roofs.  The boundaries are defined structurally and geometrically by straight or curved elements such as arches, edge beams and cables. The prestress forces from adjacent panels often counterbalance and the more efficient structures have a larger degree of symmetry and continuity such as a complete "bicycle wheel" for the roof a major sports stadium. Stadiums are grouped in a separate menu item.

The following articles are in "most recent" order. As of May 2025 we have about 47 projects listed displayed 10 per page.



Internal View of the Te Hiku Sports Hub
Internal View of the Te Hiku Sports Hub

ENTRY CATEGORY (1-6)  3  ALTERNATE CATEGORY (1-6) 5
PROJECT NAME: Te Hiku Sports Hub
APPLICATION OF PROJECT:   Insulated Enclosure

PROJECT DESCRIPTION:

The Te Hiku Sports Hub in Kaitaia, New Zealand, is a state-of-the-art leisure and sports facility designed to cater to the diverse needs of the local community year-round. This innovative project consisted of two insulated wings connected by a central shared space, each tailored to specific functions.

Chevron Renaissance Fabric Roof Canopy - View from above
Chevron Renaissance Fabric Roof Canopy - View from above

Chevron Renaissance Project Entered into the LSAA 2016 Design Awards (Cat 4 Large Fabric Structures, #4773)

Entrant: MakMax Australia (Engineer, Fabricator, Installer)

Location: Gold Coast, QLD.   Team: MakMax Australia

Application: Retail Shopping Centre

Cabramatta Lawn Bowls Club Sun Protection Roof - During Construction
Cabramatta Lawn Bowls Club Sun Protection Roof - During Construction

LSAA 2013 Design Award Entry (#4301): Cabramatta Bowls Club

Entrant: MakMax Australia

  • Category: 4 ID Number:  4301
  • Location: Fairfield Rd, Cabramatta NSW
  • Client: Paynter Dixon Constructions Pty Ltd
  • Completion Date: October 2011

APPLICATION OF PROJECT: Long span sporting arena roof.

PROJECT DESCRIPTION:

Sun safety in sport is a growing concern across all sectors of our community. Providing a playing surface protected from harmful sun is vital to the continuity of some sports. The sport of lawn bowls in particular have realised this is especially true for their aging demographic and shrinking membership.

Marrara Tennis Centre Fabric Roof - Aerial View
Marrara Tennis Centre Fabric Roof - Aerial View



This project was entered in the LSAA 2018 Design Awards (Cat 4 Large Fabric Structures, #4431)

Application: 2 roof canopies for tennis courts – one to cover the synthetic show court and stadium seating; and one to cover another synthetic multipurpose court.

PROJECT DESCRIPTION:

The project involved design, fabrication and installation of 2 fabric roof structures at the Marrara Tennis Centre (now Darwin International Tennis Centre) – one weatherproof shelter to cover the Main Show Court and its associated seating; and another protective shade shelter over a multi-purpose court. The project had a total plan covered area of over 3,750m2 with Mehler FR1000N being used on the Main Court and Gale Commercial Heavy 430 on the Multipurpose Court.

The main show court is a long spanning roof, covering a 60m x 50m space. Given the cyclonic location, this presented additional design challenges throughout the project.

Queensland State Velodrome - Interior View of Roof
Queensland State Velodrome - Interior View of Roof



Queensland State Velodrome Roof Project - Entered in the LSAA 2016 Design Awards (Cat 4 Large Fabric Structures, 4771)

Entrant: MakMax Australia (Engineer, Fabricator, Installer)

Location: Sleeman Sports Complex, Brisbane.   Completed: August 2016  Client: Watpac
Team: Cox Rayner Architects, Tensys, Arup, MakMax Australia

Application: Cycling Velodrome / indoor stadium


Inglis Selling Centre Fabric Roofs at Warwick Farm Racecourse
Inglis Selling Centre Fabric Roofs at Warwick Farm Racecourse



Commendation LSAA 2018 Design Awards Large Structures (Cat 4, 4433)

Application: Large canopies with a fabric surface area over 2800m2 to cover multiple areas at the Inglis Selling Centre Warwick Farm Racecourse

Inglis Selling Centre Fabric Roofs at Warwick Farm - Project Description

The project was the design, fabrication and installation of multiple decorative and functional canopies for the Inglis Selling Centre at Warwick Farm Racecourse. With an overall Chukoh FGT800 PTFE fabric area of approximately 3060m2, the project covered multiple areas and structure types - “Trees” to cover the horse parade ring; a shelter canopy for the patron walkway for the pre-parade ring; a canopy for the wedding pavilion, and awnings for the hotel.

Mehler Coated Technical Textiles supplied large quantities of coated fabric for the 2015 Milan Expo.

The major application was for sun shading the two main axes of the Expo. The 85,000 sqm of fabric was essentially planar rectangular panels attached to opposing valley and ridge cables.

One important concept behind the simple forms was the re-use of the fabric following the Expo.

Other projects included:

  • Iranian Pavillion (2,500 sqm)
  • Ferreo Pavillion (1,600 sqm)
  • Institution Bologna Pavillion (4,500 sqm)
  • Tent at the entrance (6,000 sqm)

For further details see HERE

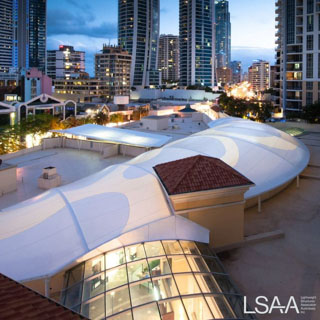

View of Pacific Fair Resort Roof
View of Pacific Fair Resort Roof



Pacific Fair Resort Roof - Entered into the LSAA 2016 Design Awards (Cat 4, Large Fabric Structures #4114)

Entrant: Fabritecture (Designer and Installer)

Location: The Esplanade.   Completed: 2016

Client: Scentre Group (Westfield)

Team:  Scentre Group (Westfield), Wade Design, Textile Fabrication Services, Fabritecture

 Application

Statement architectural fabric structure with complex steel geometry and state-of-the-art LED lighting system as part of a $670 million redevelopment of Pacific Fair Shopping Centre on the Gold Coast.
