Dreamworld Taipan Theme Park Entrance Canopy Description

The Steel Taipan ride at Dreamworld on the Gold Coast is the theme parks newest attraction. The AUD$32million roller coaster features a 1.2km track roller coaster and the Southern Hemisphere’s first triple launch system that launches the train forward, backwards, and then forwards again at a top speed of 105km/hr!

Fabritecture was contracted for the design & construction of a bespoke walkway canopy structure to shelter patrons as they wait in line for the Steel Taipan ride. The structure features custom printed Serge Ferrari PVC designed to match the architectural intent of the structure – to emulate the scales of a taipan snake!

M6 Community Recreational Facility Description

As part of Transport NSWs upgrade to the M6 freeway Stage 1 development, new recreational facilities were developed to provide shade to the community in various areas including McCarthy and Brighton Reserve. As part of the McCarthy Reserve upgrade, Fabritecture was contracted for the design and construction of eight (8) structures to provide shade cover for recreational facilities over a playground. The structures feature both Gale Pacific 95 Mesh and architecturally perforated aluminium.

DESIGN / FABRICATION / INSTALLATION BRIEF

Transport for NSW is delivering new recreational facilities for the Bayside Community before construction begins on Stage 1 of the M6 motorway in Rockdale, NSW. Fabritecture was contracted for 8 structures for installation at McCarthy Reserve. The structures are a combination of mesh shade structures clad with Gale Pacific Commercial 95 Heavy shade cloth, and aluminum architectural metal structures with custom artwork perforations in the panels.

STRUCTURAL SYSTEMS

The aluminium structures feature a steel frame with a grid system for the aluminium. The perforated panels are underslung, so the custom perforated artwork can be seen clearly from underneath the structures in the playground.

The shade structures are also steel framed and are tensioned using a Fabritecture extrusion system.

MATERIALS

The chosen material for the shade structures was Gale Pacific Commercial 95 340 Mesh, in 4 colours: Aquatic Blue, Desert Sand, Yellow and Orange. The fabric was chosen based on the colour specifications from the client.

The aluminium panels for the architectural metal structures was 6mm thick with a Colourbond Monument equivalent RAL 7021 with custom artwork perforations.

FABRICATION

The aluminium artwork features custom perforations in the patterning of native flora such as bottlebrush, and flora such as birds and frogs. There are 6 mesh structures in total at McCarthy Reserve, with 4 having an 8m diameter, and 2 with an 11m diameter. The 2 aluminium structures are 11m and 17m in diameter.

COLLABORATION, CONSTRUCTION AND MAINTENANCE

The installation of the structures occurred over existing playground equipment. This required specific planning. Construction involved the installation of all columns first and preassembling of roof discs on the ground. These were then crane lifted into their final install position. There was no overhead install.

Gale Pacific Commercial 95 340 Mesh is used widely for projects that require maximum sun protection and strength. The durable mesh fabric has low maintenance requirements and a long life performance.

COSTS

The M6 Community Recreational Facility project was valued at approximately AUD$730k.

PROJECT CREDITS

Project Name: M6 Community Recreational Facility
Location: West Botany Street
City: Rockdale, NSW, 2216
GPS Location:   -33.955663, 151.146580
Completion Date: 12-Oct-21
Category (1-8): 2 – Medium structures
Entrant Name: Fabritecture
Address:  Unit 14/15 John Duncan Court, Varsity Lakes, QLD 4227
Telephone:   +61 7 5587 7000
Mobile:   +61 408 402 716
Email Address:  This email address is being protected from spambots. You need JavaScript enabled to view it.
Website Address: www.fabritecture.com
Entrant Type / Role: Designer / Fabricator / Installer
Project Client: Transport NSW
Project Architect: Design Inc.
Structural Engineer: Greenup Design Engineers; Cardno
Building Contractor: Ertech Pty Ltd
Fabricator(S): Confidential

Entrant: Structurflex Ltd

Client: Emirates Engineering Services    Architect: ARENCO
Structural Engineer: Wade Consulting Group
Fabricator(s): Structurflex Ltd

This project was entered in the LSAA 2007 Design Awards (Medium Structures #3022)

Application and Function

Provide an ascetically pleasing entrance structure that is visible from a great distance.
The instruction was to supply an open and light atrium at the entrance to the mall.

Entrant: Oasis Tension Structures

• Location: East Boundary Rd, East Bentleigh

• Client: Glen Eira City Council; Completion Date: December 2011

Judges Comments:

"Advances the technology in insulated membranes"

"Rather idiosyncratic form which answers a functional challenge, has a bit of fun, and provides some identity to a facility not short of disparate elements"

This project was entered into the LSAA 2016 Design Awards Category 2 (Medium Fabric Structures # 2114)

Entrant: Fabritecture (Designer and Installer)

Location: Broadbeach, QLD.   Completed: Feb 29 2016

Client: Scentre Group (Westfield)

Team: Scentre Group (Westfield), Wade Design, Fabritecture, Textile Fabrication Services, Fabritecture

Application

A spectacular feature porte cochere architectural fabric structure for the main entry point of the new Pacific Fair Shopping Centre.

This project was entered in the LSAA 2011 Design Awards (Cat 2, 2131)

APPLICATION OF PROJECT:

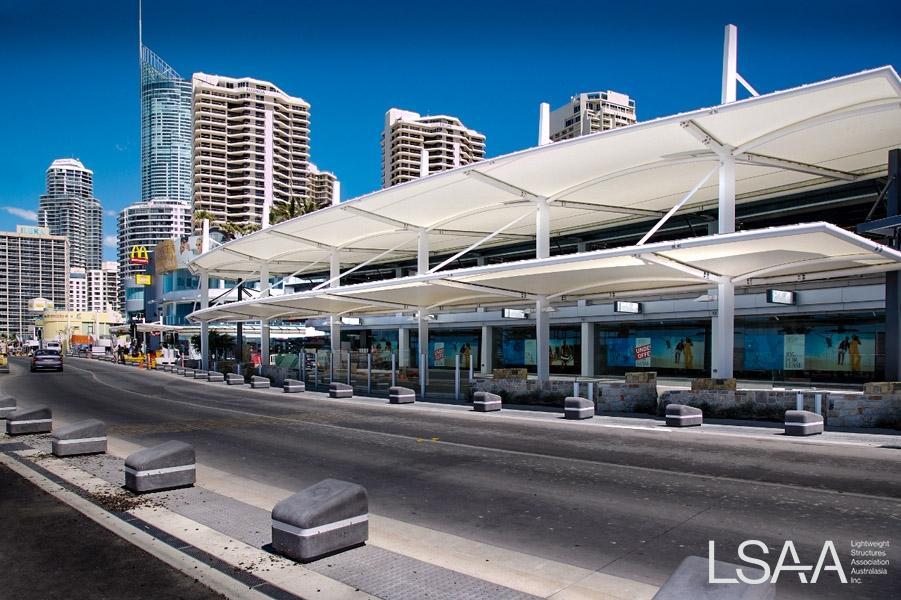

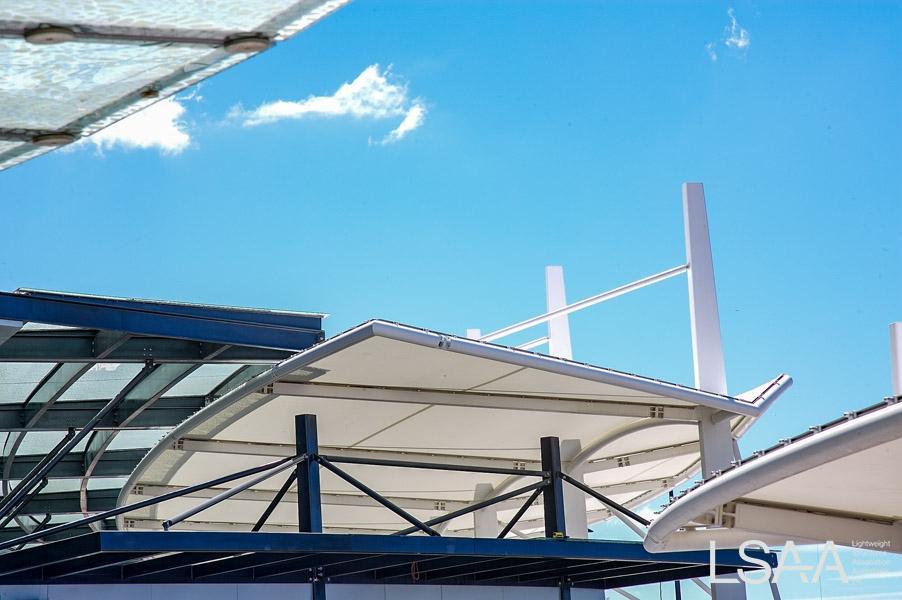

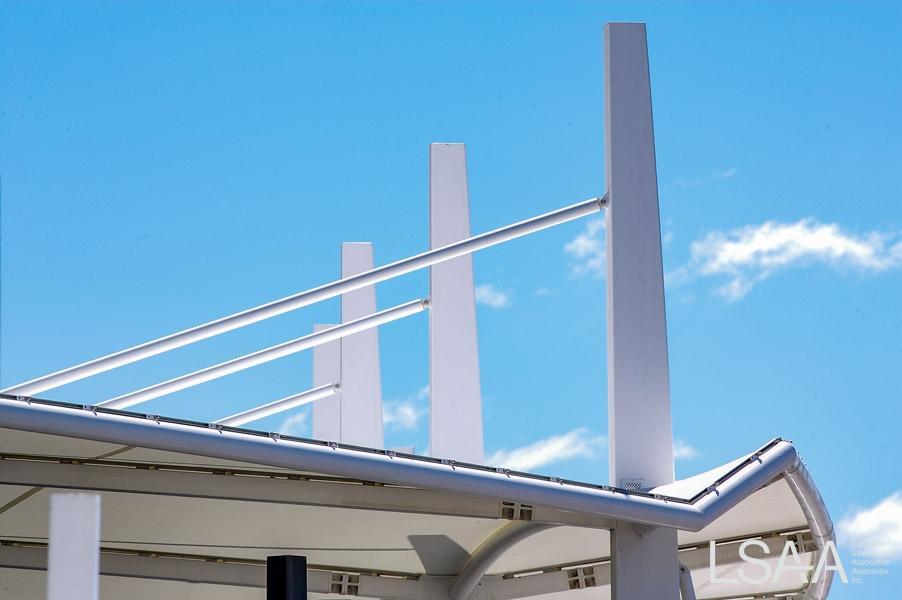

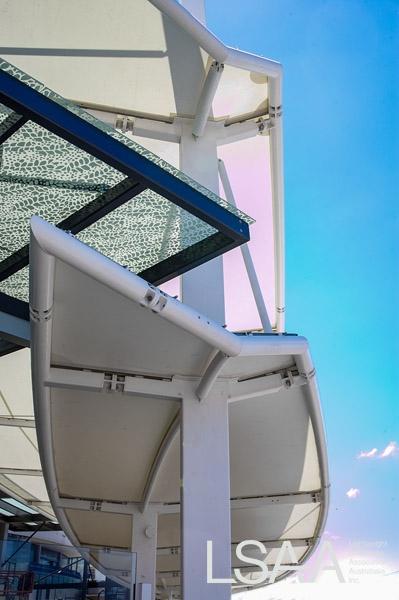

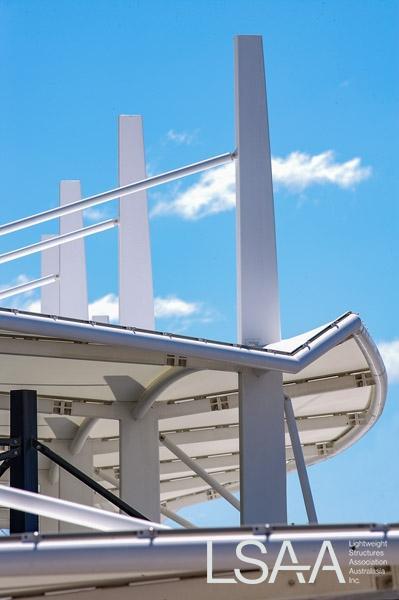

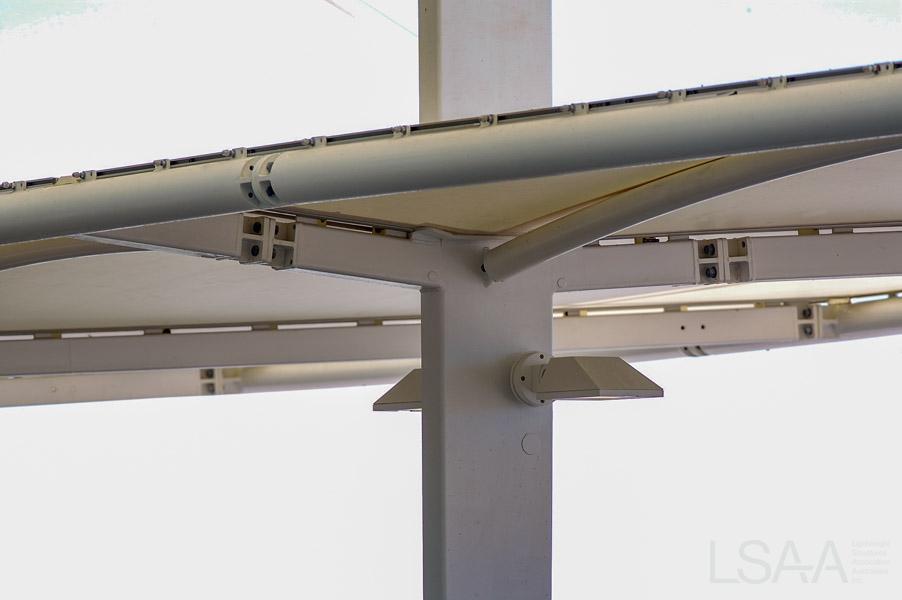

Hospitality and Recreation: The tensile fabric structures provide shade canopies for the patrons of the alfresco dining areas as well as creating an aesthetic focal point to the front of the apartment building at Soul, Surfers Paradise.

APPLICATION OF PROJECT:

ETFE 600 sqm Skylight over an indoor swimming pool

PROJECT DESCRIPTION:

The Shore Physical Education Centre (SPEC) was built to deliver a suite of new flexible learning spaces including a multi-purpose sports complex and an indoor swimming pool. The 16 pillow, 3-layer ETFE skylights were a key part of the indoor swimming pool roof, designed to fill the indoor aquatic centre with natural lighting, while also providing a modern, highly aesthetic architectural feature to the roof.

DESIGN / FABRICATION / INSTALLATION BRIEF

The ETFE skylights located over the indoor swimming pool in the new Shore Physical Education Centre (SPEC) were required to interface with the surrounding Kingspan insulated roof system. We worked closely with the project Architect, Structural Engineer and Builder to develop design details that allowed the two elements to seamlessly connect.

Hiding of ductwork and the air supply plenum was important to the overall finish and as part of our value engineering approach to design, we proposed unique design touches, such as painting the air supply lines to match the internal fascia and keeping the ductwork hidden adjacent to structural elements in order to keep the premium-quality project finish required by the project brief.

Entrant: Structurflex Ltd - Engineering Fabrication Installation
Location: Hamilton Lake Domain
Client: Hamilton City Council
Architect: 360 Architects
Struct. Eng.: Compusoft Engineering
Builder: Foster Construction
Fabricator: Structurflex

This project was entered in the LSAA 2009 Design Awards - Medium Structures (#2022)

No further details have been entered to date.

Project entered into the LSAA 2016 Design Awards (Medium Fabric Structures Entry 2698)

Entrant: Structureflex (Designer / Engineer)

Location: Echuca, Victoria. Completed: January 2015
Client: St Joseph's Catholic College
Team: Y2 Architects, Steve Huppert, John Killmister (Cert. Eng), Shade Living Pty Ltd, Fabric Solutions (membrane), Thornton Engineering (steel)

Application

As part of a new gymnasium and music centre it was proposed to extend a covered outdoor area over the new netball court that adjoins the building with a 38m x 22m PVC barrel arch roof structure attached to new steel framed gymnasium.

Jakarta ETFE Canopy

Entrant: Fabritecture (Designer and Installer)

Location: Jakarta, Indonesia.   Completed: June 2015  Client: Leightons Asia
Team: Denton Corker Marshall, Maffeis Engineering, Fabritecture, Seele Covertex

Application: ‘Floating’ canopy suspended over a courtyard using a 2-layer ETFE cushion system, supported exclusively by stainless steel tie rods

This project was entered in the LSAA 2016 Design Awards (Medium Fabric Structures, 8128)
